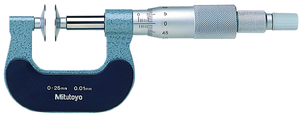

Mitutoyo Disc Micrometer, 0-25mm - 169-201
Brand: Mitutoyo- SKU:
- 169-201
- ID:
- 366557
| Range | 0 - 25 mm |
| Accuracy | ±4μm |
$410.00
Mitutoyo Disc Micrometer, 0-25mm - 169-201
This Disc Micrometer has a non-rotating spindle and allows you measure a range of different
materials.
It offers you the following benefits:
- It features a non-rotating spindle and disc-shaped measuring surfaces.
- Measuring the root tangent length of spur and helical gears
- Measurable range of gear pitch: 0,5-6 module
- It‘s suitable for measuring materials such as felt, rubber, cardboard and fabric.
- Disk is 20mm
| Accuracy | ±4 µm |
| Flatness | 1 µm |
| Parallelism | 4 µm |
| Range | 0 - 25 mm |
| Measuring force | 8,02 N ± 0,8 N (169-101) 5-10 N |
| Delivered | Including box, key |
| Digital/Analog | Analog |
| Inch-Metric | Metric |
| Scale | Thimble and sleeve satin chrome finish, ø18 mm |
| Graduation | 0,01 mm |
| Measuring spindle | ø8 mm, non-rotating, spindle pitch 0,5 mm |
| L: | 37.5 |
| a: | 6 |
| b: | 13.5 mm |
| c: | 25 |
