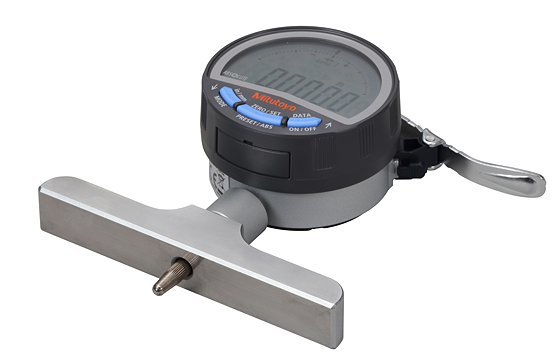

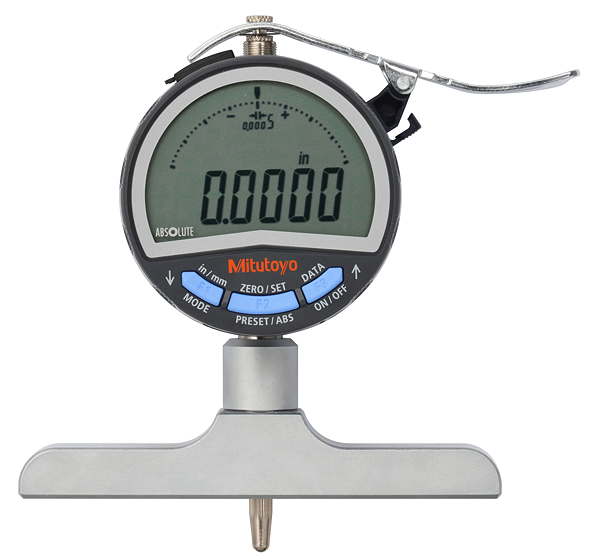

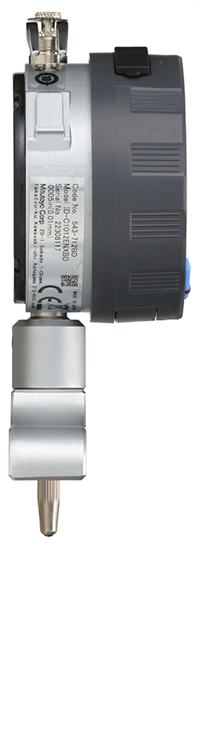

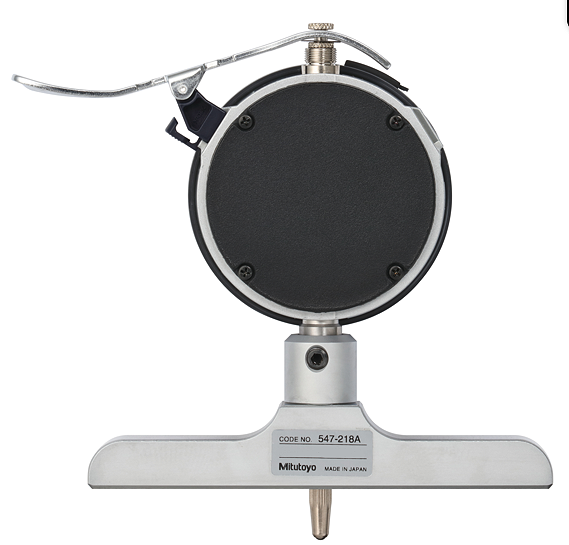

Mitutoyo Digital Depth Gauge - Range 0-8", 0,0005", 101,6mm Base - 547-218A
Brand: Mitutoyo- SKU:
- 547-218A
- ID:
- 679266
$555.00
Mitutoyo Digital Depth Gauge - Range 0-8", 0,0005", 101,6mm Base - 547-218A
This ABSOLUTE Digimatic Indicator Depth Gauge offers you the following benefits:
- Equipped with the ABSOLUTE Digimatic Indicator ID-C.
- It has a hardened, precision ground and micro-lapped reference face on its base
Features:
- Digital/Analog: Digital
- Inch/Metric
- Range: 0 - 8 "
- Stroke: 0.5 mm
- Accuracy: ± 0,002"/± 20 µm
- Base flatness: 0,0002"/ 5 µm
- Measuring force: ≤ 1.5 N
- Scale: Capacitance type ABSOLUTE linear encoder
- Contact point: Carbide ball, thread: # 4-48UNF
- Alarm: Low voltage, setting errors, sensor error, display overflow a.s.o.
- Battery life: Approx. 7000 hours
- Delivered: Including box and extensions 0,5, 1, 2, 4", contact point 21JZA243
- Digimatic data output: Yes
- ABS / INC (INC ZERO): Yes
- DATA (output with cable) / HOLD (display value): Yes
- Lock function: Yes
- Power supply: 1 battery CR2032 (3V
- Mass: 330 g
- GO/±NG judgement: Yes
- Calculation function (with formula): Yes
