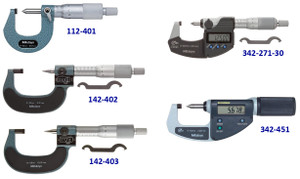

Mitutoyo Crimp Height Type Micrometers
- IP54/65 water/dust protection(Series 342)
- Measures the height of crimp contacts
- With Ratchet Stop for constant force
- With SPC output(Series 342)
- With digit counter counter(Series 142)
- Supplied in fitted plastic case
Technical Data:
Accuracy: Refer to the list of specifications. (excluding quantizing error for digital models)
Resolution*: 0.001mm or .00005"/0.001mm
Graduation**: 0.01mm or .001"
Display*: LCD
Battery*: SR44 (1 pc.), 938882
Battery life*: Approx. 1.2 years under normal use (3 years: Quickmike type)
Dust/Water protection level*: IP65
* Digital models
** Analog models
Function of Digital Model: Origin-set, Zero-setting, Data hold, Data output, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error
Optional Accessories for Digital Model:
- 05CZA662: SPC cable with data switch (1m / 40")
- 05CZA663: SPC cable with data switch (2m / 80")
- 937387: SPC cable for Quickmike type (1m / 40")
- 965013: SPC cable for Quickmike type (2m / 80")
For more info, visit www.p65warnings.ca.gov.
| Item Number | Description | Price | Quantity | |||
|---|---|---|---|---|---|---|
| 342-371-30 | Crimp Height Type Micrometer | Digital | 0 - 0.8" / 0 - 20 mm | ± 0.00015" / 3µm | $ 533.00 | |
| 342-271-30 | Crimp Height Type Micrometer | Digital | 0 - 20 mm | ±3µm | $ 533.00 | |
| 342-451 | Crimp Height Type Micrometer | Digital Quickmike | 0 - 15 mm | ±3µm | $ 1,150.00 | |
| 142-402 | Crimp Height Type Micrometer | Mechanical Counter | 0 - 25 mm | ±3µm | $ 353.00 | |
| 142-403 | Crimp Height Type Micrometer | Mechanical Counter | 0 - 25 mm | ±3µm | $ 384.00 | |
| 112-401 | Crimp Height Type Micrometer | Mechanical | 0 - 25 mm | ±3µm | $ 271.00 |
