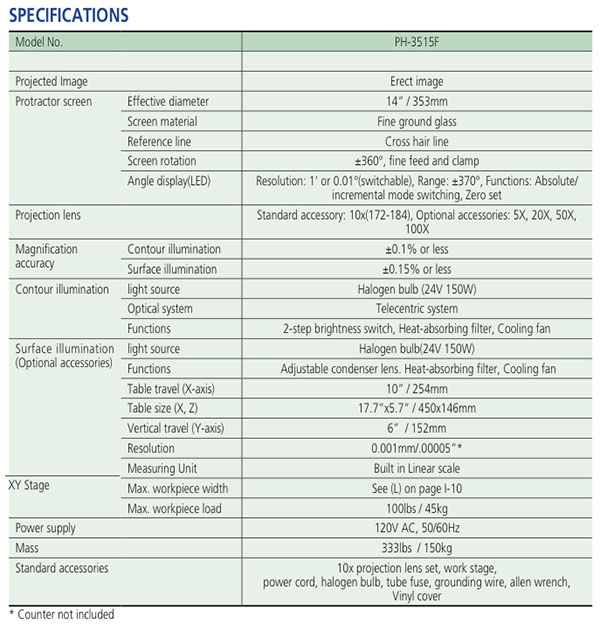

Mitutoyo 14" Screen Heavy Duty Profile Projector
- Erect image on high brightness screen.
- 14" (353mm) dia. protractor screen with crosshairs
- and staggered lines for easy alignment.
- Digital angle measurement of 1' or 0.01° with built in angle counter.
- Floating-type workstage incorporates linear scales for fast, accurate measurement.
- Halogen contour illumination.
- Fiber-optic illumination cables and halogen included.
- Suitable for thread pitch measurements — free from blurred or distorted images when the workpiece is angled.
- Wide range of accessories for varied applications.
For more info, visit www.p65warnings.ca.gov.
| Item Number | Description | Price | Quantity |
|---|---|---|---|
| 174-183A | Mitutoyo Display Unit for Linear Scale - 2-axis KA-212 COUNTER | $ 649.95 | |
| PH-3515F | Mitutoyo 14" Screen Heavy Duty Profile Projector | $ 12,900.00 | |
| 64AAB176 | PH-3515F Stand (Optional) | $ 757.00 | |
| 332-151 | Mitutoyo Optoeye Edge Detection System for QM-Data 200 | $ 1,820.00 | |
| 264-156A | Mitutoyo QM-DATA200 ARM-MOUNT MODEL | $ 3,000.00 | |
| 12AAE671 | Attachment board (A) | $ 45.00 |
