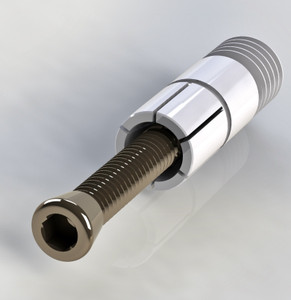

Mite-Bite Threaded Pins
Threaded XYZ Pins incorporate an internal rotary broached hex for simple installation and removal from a tombstone, grid plate or fixture plate. Threaded Pins may be installed in a drilled and reamed hole for precise location or set in a hardened drill bushing for fixture strength and wear resistance. To install a Threaded XYZ Pin in a precision bore, drill and ream the hole over the nominal diameter minimum of +0.0001 to +0.0005″. (+.003 to +0.013mm).
*G – Minimum diameter pin can be machined or turned down to
** Torque of pin body needs to exceed torque of tapered screw
For more info, visit www.p65warnings.ca.gov.
| Item Number | Description | A | B | C | D | F (+/-) .000/.001″(.000/.025mm) | G* | Price | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| 38860 | Threaded M16x2.0 | 45mm | 16mm | 13mm | 16.00mm | 16.00mm | - | $ 102.50 | |
| 31850 | Threaded 1/2-13 | 1.625″ | 0.60″ | .053″ | .050″ | .500″ | - | $ 99.95 | |
| 31860 | Threaded 5/8-11 | 1.875″ | 0.62″ | 0.62″ | 0.62″ | .625″ | - | $ 102.50 | |
| 38850 | Threaded M12x1.75 | 38mm | 15mm | 13mm | 12.00mm | 12.00mm | - | $ 99.95 |
