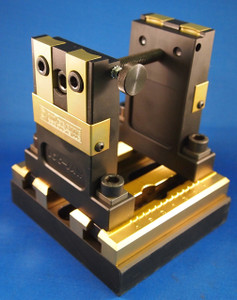

The Loc-Jaw® system was conceived to simplify, and allow greater tooling access and more versatility securing your parts when 4th and 5th axis machining. Designed to hold raw stock without a pre-op using the carrier method, penetrating material using the Knife-edge grippers or holding machined surfaces with the Blunt-edge grippers installed.

Features:

• Unique design allows access to bottom of workpiece
• Ability to hold parts from .500″ to 4.00″ or up to 1 Meter with optional extension kit
• 6,000+ lbs of holding force gripping on only .125″ of material
• Knife-Edge grippers designed to penetrate into material up to .060″ deep. Blunt Edge Grippers are also included for non-marring applications. All grippers heat treated A2.
• Centering Disk included for Loc-Jaw® base
• Set of locating pins included. (Liners installed in base)
• Blunt-edge grippers with #2 or #3 grit carbinite coating are recommended for high speed machining on hard alloys

*Max torque of 25 f. lbs. using Knife Edge grippers on material > 40Rc due to point contact.

# 14500 - Loc-Jaw® System
Ships fully assembled with all tools required

# 14525 - Loc-Jaw® Extension Kit
Includes base plate with rails, threaded rod 1 meter long, and locking nut with spacer

Replacement Parts:

• 14501 - Loc-Jaw® Support Bolt #1 (M10 x 45mm)
• 14502 - Loc-Jaw® Support Bolt #2 (M10 x 65mm)
• 14503 - Loc-Jaw® Support Bolt #3 (M10 x 90mm)
• 14504 - Loc-Jaw® Support Bolt #4 (M10 x 110mm)
• 14508 - Loc-Jaw® Combo-Edge Grippers (2 per pack) - 1 side knife edge, 1 side blunt edge with Tungsten Carbide coating
• 14518 - Loc-Jaw® Jaw Set - includes 2 Jaws, 4 Combo-Edge Grippers & Screws
• 14520 - Loc-Jaw® Rail Set - includes 4 rails, Screws, Dowel Pins
