Mitee-Bite Loc-Jaw® System

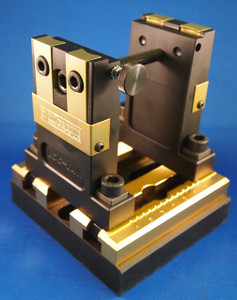

The Loc-Jaw® system was conceived to simplify, and allow greater tooling access and more versatility securing your parts when 4th and 5th axis machining. Designed to hold raw stock without a pre-op using the carrier method, penetrating material using the Knife-edge grippers or holding machined surfaces with the Blunt-edge grippers installed.
Features:
- Unique design allows access to bottom of workpiece
- Ability to hold parts from .500″ to 4.00″ or up to 1 Meter with optional extension kit
- 6,000+ lbs of holding force gripping on only .125″ of material
- Knife-Edge grippers designed to penetrate into material up to .060″ deep. Blunt Edge Grippers are also included for non-marring applications. All grippers heat treated A2.
- Centering Disk included for Loc-Jaw® base
- Set of locating pins included. (Liners installed in base)
- Blunt-edge grippers with #2 or #3 grit carbinite coating are recommended for high speed machining on hard alloys
Torque (Ft-lbs) | Holding Force (lbs) |
10 | 2,000 |
15 | 3,000 |
20 | 4,000 |
25 | 5,000 |
30 | 6,000 |
*Max torque of 25 f. lbs. using Knife Edge grippers on material > 40Rc due to point contact.
# 14500 - Loc-Jaw® System
Ships fully assembled with all tools required
# 14525 - Loc-Jaw® Extension Kit
Includes base plate with rails, threaded rod 1 meter long, and locking nut with spacer
Replacement Parts:
- 14501 - Loc-Jaw® Support Bolt #1 (M10 x 45mm)
- 14502 - Loc-Jaw® Support Bolt #2 (M10 x 65mm)
- 14503 - Loc-Jaw® Support Bolt #3 (M10 x 90mm)
- 14504 - Loc-Jaw® Support Bolt #4 (M10 x 110mm)
- 14508 - Loc-Jaw® Combo-Edge Grippers (2 per pack) - 1 side knife edge, 1 side blunt edge with Tungsten Carbide coating
- 14518 - Loc-Jaw® Jaw Set - includes 2 Jaws, 4 Combo-Edge Grippers & Screws
- 14520 - Loc-Jaw® Rail Set - includes 4 rails, Screws, Dowel Pins
![Warning Icon](https://cdn11.bigcommerce.com/s-6vccrv70fh/images/stencil/original/image-manager/warning-icon-new.png?t=1709211126)
For more info, visit www.p65warnings.ca.gov.
Item Number | Description | Price | Quantity |
---|---|---|---|
14508 | Loc-Jaw® Combo-Edge Grippers (2 per pack), 1 side knife edge, 1 side blunt edge with Tungsten Carbide coating | $ 64.95 | |
14518-1 | Loc-Jaw® Jaw Set, includes 2 Jaws, 4 Combo-Edge Grippers & Screws | $ 758.94 | |
14520 | Loc-Jaw® Rail Set, includes 4 rails, Screws, Dowel Pins | $ 483.00 | |
14501 | Loc-Jaw® Support Bolt #1 (M10 x 45mm) | $ 2.59 | |
14502 | Loc-Jaw® Support Bolt #2 (M10 x 65mm) | $ 3.50 | |
14503-1 | Loc-Jaw® Support Bolt #3 (M10 x 90mm) | $ 4.03 | |
14504 | Loc-Jaw® Support Bolt #4 (M10 x 110mm) | $ 13.97 | |
14500 | Loc-Jaw® System | $ 1,449.00 | |
14525 | Loc-Jaw® System Extension Kit | $ 754.69 |
