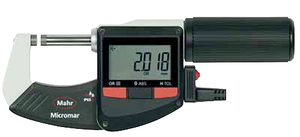

Mahr Micromar 40 EWR Digital Micrometer, 2"-3"/50mm-75mm - 4157002
Brand: Mahr- SKU:
- 4157002
- ID:
- 354461
| Error Limit | 3 µm |
Mahr Micromar 40 EWR Digital Micrometer, 2"-3"/50mm-75mm - 4157002
The NEW Micromar 40 EWR micrometer with data output incorporates an extra large display, a reference system that retains the zero position setting and lock feature to prevent user error. It also incorporates new MarConnect data output where data collection is selected by cable – either USB, RS-232C, or Digimatic.
RESET (set display to zero), ABS (display can be set to zero without losing reference to ORIGIN), mm/inch, ORIGIN (for entering a numerical value), LOCK function (key lock), TOL (tolerance and warning limits), HOLD (storage of measured values), DATA (data transmission via connection cable), Bi-directional data interface (external input option of characteristic values and setting of individual lock functions by software MarCom)
- High contrast analog display
- Resolution: 0.00005”/0.001mm
- Spindle Thread Pitch: 0.5mm
- Measuring Force: 5N - 10N
- Stainless spindle is hardened throughout and ground
- Spindle and anvil are carbide-tipped
- Rapid drive
- Ratchet is integrated in the thimble
- Lacquered steel frame, heat insulated
- Data interface MarConnect (bidirectional), USB, Digimatic
- Battery life approx. 2 years
