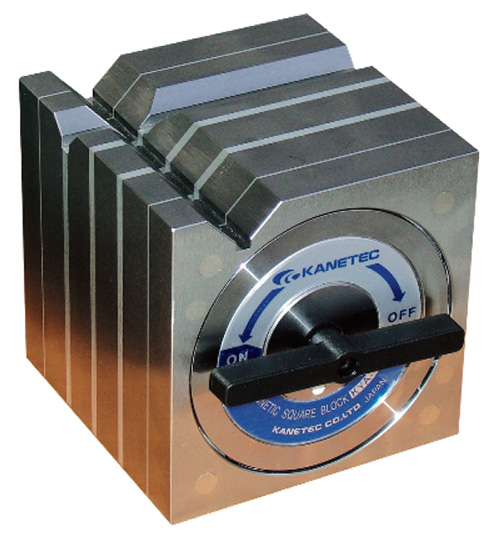

Kanetec Model KYA Magnetic Square Type Block - KYA-20
Brand: Kanetec- SKU:
- KYA-20
- ID:
- 312022
| Holding Power (V Groove 1) | 650N (65 kgf) |
| Holding Power (V Groove 2) | 650N (65 kgf) |
| Weight | 112 lbs. |
$3,495.00
Kanetec Model KYA Magnetic Square Type Block - KYA-20
Application:
- Holding tools for marking and light duty machining
- Holding tools for electric discharge machining and wire cutting
- Holding tools for three-dimensional measuring instruments and various measuring systems
Features:
- Workpieces can be held on three faces of top (V face) and both side faces
- On/Off lever is detachable. ( length of each opposite side of hexagonal hole is 8mm )
- They are of waterproof and oilproof const-ruction
- An M8 tapped hole is provided on the top for lifting (KYA-18 only)
- Super high accuracy finish is also available. Please contact us.
Click to view the KYA Specifications & Dimensions
