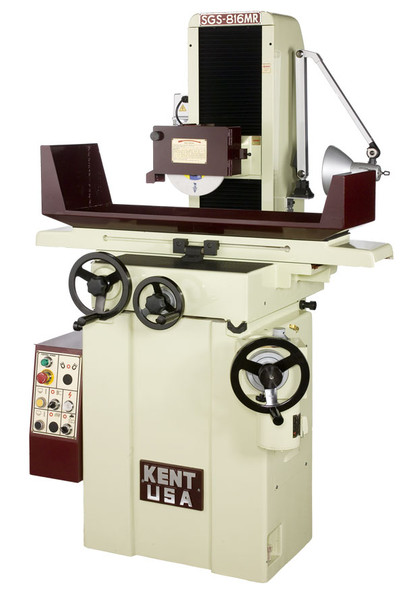

Kent SGS-816M Manual Hand Feed Grinder
Product Features:
- 8" x 16" working capacity
- Downfeed dial graduated in 0.0001"
- Roller ball on linear table ways for easy and smooth longitudinal movements
- High column, 18” spindle center to table for extra clearance under the wheel
- 8" cross traverse for extra width and capacity, perfect for the mold shops
- Centralized automatic lubrication system provides lubrication to all points
- Safety 24V control circuit power
- Micro-downfeed and rapid elevation (MR Model)
Standard Accessories:
- Grinding wheel
- Wheel flange
- Wheel balancing base
- Wheel balancing arbor
- Diamond table dresser base & tip
- Leveling bolts & pads
- Halogen Work light
- Toolbox with tools
Optional Accessories:
- Fine pole electric chuck & control
- Permanent chuck
- Dust-suction coolant system
- Flood coolant system
- Overhead parallel dresser
- Extra wheel flange
- DRO system
Specifications:
| Item Number | SGS-816M/MR |
| Working Capacity | 8" x 16" |
| Table Travel | 17" |
| Saddle Travel | 8.25" |
| T-Slot | 1 x 9/16” |
| Spindle Motor | 2 HP |
| Spindle Speed | 3500 RPM |
| Grinding Wheel | 8” x 1/2” x 1-1/4” |
| Vertical Graduation | 0.0001" |
| Vertical Revolution | 0.050" |
| Spindle to Table | 18" |
| Net Weight | 1430 LBS |
| Gross Weight | 1760 LBS |
For more info, visit www.p65warnings.ca.gov.
| Item Number | Description | Price | Quantity | |
|---|---|---|---|---|
| KENT-DRO | DRO system | yes | Call For Pricing | - |
| KENT-DSCS | Dust-suction Coolant System | yes | Call For Pricing | - |
| KENT-WF | Extra Wheel Flange | yes | Call For Pricing | - |
| KENT-FPECC | Fine pole electric chuck & control | yes | Call For Pricing | - |
| KENT-FCS | Flood Coolant System | yes | Call For Pricing | - |
| KENT-OPD | Overhead Parallel Dresser | yes | Call For Pricing | - |
| KENT-PMC | Permanent Magnetic Chuck | yes | Call For Pricing | - |
| KENT-RMC | Rotary Magnetic Chuck ψ150mm | yes | Call For Pricing | - |
| KENT-RC | Rustlick Coolant (1 Gallon, mixes 1:30) | yes | Call For Pricing | - |
| SGS-816M | Kent SGS-816M Manual Hand Feed Grinder | yes | Call For Pricing | - |
