JET Elite 26" Variable Speed Vertical Bandsaw EVBS-26 - 891115
Brand: Jet- SKU:
- 891115
- ID:
- 351603

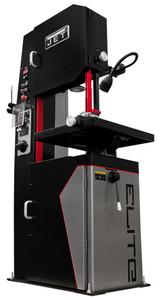

JET Elite 26" Variable Speed Vertical Bandsaw EVBS-26
891115
Elite Vertical Bandsaws are the perfect blend of power and balance. Featuring variable speed drivetrains with precision balanced cast-iron blade wheels with a bonded rubber blade track, precision ground articulating table, 4.2 KVA Bi-Metal Blade stations, and CSA / CUS Certification make Elite vertical bandsaws the choice for precision sawing of ferrous and non-ferrous materials.
A New Legacy of Saws
At the heart of every metalworking operation, there are saws. Saws that are being challenged to cut a wider variety of materials in different ways than ever before. Saws that need to demonstrate new kinds of flexibility, are counted on to last longer, and operate more safely at the same time.
All saws come standard with variable speed. These are the most precise, most durable, and safest bandsaws you could ever put into your shop.
Features:
- Variable speed drivetrain allows operators to fine tune the blade speed fast and easily
- Precision balanced cast-iron blade wheels transmit speed and torque to the blade
- Precisely ground, articulating table with 10° left and 45° right movement for contour cutting at any angle
- Built-in chip blower re-directs debris from the cutting area, while the magnifying glass provides a clear view
- Easily adjustable blade guard for increased safety
- Heavy-duty completely enclosed steel frame provides strength and rigidity
- Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extends blade life
- Handwheel with blade tensioning gauge accurately measures blade pressure to prevent breakage
- 4.2 Kilo-volt ampere bi-metal blade welder has a safety glass cover for increased user safety
- For added safety, the EVBS-26 Bandsaw follows strict guidelines and electrical requirements to be certified by CSA Group
Standard Equipment:
- Bi-metal blade
- Work lamp
- Rip fence
- Chip Pan
Specifications:
| Stock Number | 891115 |
| Model | EVBS-26 |
| Height Capacity (Max.) (In.) | 14" |
| Throat Capacity (In.) | 26" |
| Blade Length (In.) | 1/4" x 0.025" x 185-1/2" |
| Blade Width (Min.-Max.) (In.) | 1/8" - 1" |
| Blade Speeds (SFPM) | Variable 50-5000 |
| Table Size (L x W) (In.) | 27-1/2" x 23-1/2" |
| Table Height (In.) | 39-3/8" |
| Table Tilt (Deg.) | 10 L & 45 R |
| Motor (HP) | 3 HP, 230/460V, 3Ph |
| Amperage Draw @ 230V 3Ph | 18 |
| Amperage Draw @ 460V 3Ph | 9 |
| Welding voltage (V) | 4.2 KVA Bi-Metal Welder |
| Overall Dimensions (L x W x H) (In.) | 51" x 32" x 83-1/2" |
| Weight | 1433 lbs. |
| Gross Weight | 1655 lbs. |
Click for the JET Bi-Metal Bandsaw Blade 1/4" x 0.025" x 185-1/2" (14/18VT) for EVBS-26 - 891190
