Interstate High Speed Steel Hand Taps

Brand:   Interstate
ID:
360673
callling
Current Stock:

Value Collection Interstate

Interstate High Speed Steel Hand Taps

Bottoming Style


Features:

  • HSS Ground Thread for Ferrous, Nonferrous and Nonmetallic Materials.
  • These taps have one to two chamfered threads which enable them to thread closer to the bottom of a blind hole with full threads.
  • Smaller sizes may have a point. (Male center) (1-2 Pitches).
  • Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
  • High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
  • Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.


Enter any Item Number below into the search box to see additional specifications.

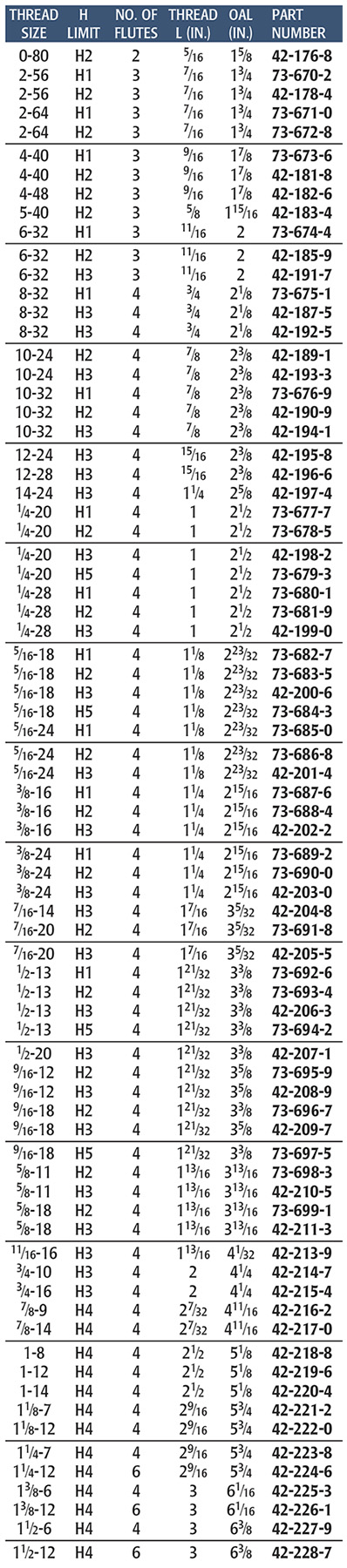

Click to view the Specifications Table/Ordering Guide

Warning Icon

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

For more info, visit www.p65warnings.ca.gov.

Item Number DescriptionThread SizeThread LimitFlutesThread LengthOAL Price Quantity
42-193-3 High Speed Steel Hand Tap #10-24 UNC H3 4 7/8" 2-3/8" $ 5.95
73-676-9 High Speed Steel Hand Tap #10-32 UNF H1 4 7/8" 2-3/8" $ 6.95
42-190-9 High Speed Steel Hand Tap #10-32 UNF H2 4 7/8" 2-3/8" $ 6.95
42-194-1 High Speed Steel Hand Tap #10-32 UNF H3 4 7/8" 2-3/8" $ 5.95
42-196-6 High Speed Steel Hand Tap #12-28 UNF H3 4 15/16" 2-3/8" $ 7.95
42-197-4 High Speed Steel Hand Tap #14-24 UNS H3 4 1-1/4" 2-5/8" $ 6.34
73-670-2 High Speed Steel Hand Tap #2-56 UNC H1 3 7/16" 1-3/4" $ 9.44
42-178-4 High Speed Steel Hand Tap #2-56 UNC H2 3 7/16" 1-3/4" $ 7.46
73-672-8 High Speed Steel Hand Tap #2-64 UNF H2 3 7/16" 1-3/4" $ 11.14
42-181-8 High Speed Steel Hand Tap #4-40 UNC H2 3 9/16" 1-7/8" $ 4.84
42-183-4 High Speed Steel Hand Tap #5-40 UNC H2 3 5/8" 1-15/16" $ 5.51
73-674-4 High Speed Steel Hand Tap #6-32 UNC H1 3 11/16" 2" $ 7.95
42-191-7 High Speed Steel Hand Tap #6-32 UNC H3 3 11/16" 2" $ 5.95
42-187-5 High Speed Steel Hand Tap #8-32 UNC H2 4 3/4" 2-1/8" $ 6.95
42-228-7 High Speed Steel Hand Tap 1-1/2 - 12 UNF H4 6 3" 6-3/8" $ 262.95
42-227-9 High Speed Steel Hand Tap 1-1/2 - 6 UNC H4 4 3" 6-3/8" $ 202.56
42-223-8 High Speed Steel Hand Tap 1-1/4 - 7 UNC H4 4 2-9/16" 5-3/4" $ 184.95
42-222-0 High Speed Steel Hand Tap 1-1/8 - 12 UNF H4 4 2-9/16" 5-3/4" $ 139.95
42-219-6 High Speed Steel Hand Tap 1-12 UNF H4 4 2-1/2" 5-1/8" $ 86.95
42-226-1 High Speed Steel Hand Tap 1-3/8 - 12 UNF H4 6 3" 6-1/16" $ 229.95
42-225-3 High Speed Steel Hand Tap 1-3/8 - 6 UNC H4 4 3" 6-1/16" $ 173.60
42-218-8 High Speed Steel Hand Tap 1-8 UNC H4 4 2-1/2" 5-1/8" $ 66.46
73-693-4 High Speed Steel Hand Tap 1/2-13 UNC H2 4 1-21/32" 3-3/8" $ 12.34
73-694-2 High Speed Steel Hand Tap 1/2-13 UNC H5 4 1-21/32" 3-3/8" $ 21.95
42-207-1 High Speed Steel Hand Tap 1/2-20 UNF H3 4 1-21/32" 3-3/8" $ 16.95
73-679-3 High Speed Steel Hand Tap 1/4-20 UNC H5 4 1" 2-1/2" $ 5.75
73-680-1 High Speed Steel Hand Tap 1/4-28 UNF H1 4 1" 2-1/2" $ 8.95
42-199-0 High Speed Steel Hand Tap 1/4-28 UNF H3 4 1" 2-1/2" $ 6.95
42-213-9 High Speed Steel Hand Tap 11/16-16 UNS H3 4 1-13/16" 4-1/32" $ 41.95
42-214-7 High Speed Steel Hand Tap 3/4-10 UNC H3 4 2" 4-1/4" $ 46.95
42-202-2 High Speed Steel Hand Tap 3/8-16 UNC H3 4 1-1/4" 2-15/16" $ 8.95
73-689-2 High Speed Steel Hand Tap 3/8-24 UNF H1 4 1-1/4" 2-15/16" $ 10.95
73-690-0 High Speed Steel Hand Tap 3/8-24 UNF H2 4 1-1/4" 2-15/16" $ 14.95
42-203-0 High Speed Steel Hand Tap 3/8-24 UNF H3 4 1-1/4" 2-15/16" $ 5.90
73-683-5 High Speed Steel Hand Tap 5/16-18 UNC H2 4 1-1/8" 2-23/32" $ 10.95
42-200-6 High Speed Steel Hand Tap 5/16-18 UNC H3 4 1-1/8" 2-23/32" $ 7.95
73-685-0 High Speed Steel Hand Tap 5/16-24 UNF H1 4 1-1/8" 2-23/32" $ 9.95
73-686-8 High Speed Steel Hand Tap 5/16-24 UNF H2 4 1-1/8" 2-23/32" $ 11.95
42-201-4 High Speed Steel Hand Tap 5/16-24 UNF H3 4 1-1/8" 2-23/32" $ 7.95
73-698-3 High Speed Steel Hand Tap 5/8-11 UNC H2 4 1-13/16" 3-13/16" $ 48.95
42-210-5 High Speed Steel Hand Tap 5/8-11 UNC H3 4 1-13/16" 3-13/16" $ 33.95
73-699-1 High Speed Steel Hand Tap 5/8-18 UNF H2 4 1-13/16" 3-13/16" $ 40.95
42-211-3 High Speed Steel Hand Tap 5/8-18 UNF H3 4 1-13/16" 3-13/16" $ 23.99
42-204-8 High Speed Steel Hand Tap 7/16-14 UNC H3 4 1-7/16" 3-5/32" $ 15.95
73-691-8 High Speed Steel Hand Tap 7/16-20 UNF H2 4 1-7/16" 3-5/32" $ 19.95
42-217-0 High Speed Steel Hand Tap 7/8-14 UNF H4 4 2-7/32" 4-11/16" $ 46.80
42-216-2 High Speed Steel Hand Tap 7/8-9 UNC H4 4 2-7/32" 4-11/16" $ 46.80
73-695-9 High Speed Steel Hand Tap 9/16-12 UNC H2 4 1-21/32" 3-5/8" $ 21.72
42-208-9 High Speed Steel Hand Tap 9/16-12 UNC H3 4 1-21/32" 3-5/8" $ 28.95
73-697-5 High Speed Steel Hand Tap 9/16-18 UNF H5 4 1-21/32" 3-3/8" $ 38.95
