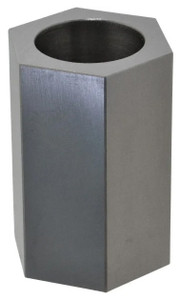

Interstate 5C Hex Collet Block Chuck with Standard Closer - 34-976-1
Brand: Interstate- SKU:
- 34-976-1
- ID:
- 106876
$62.95
Interstate 5C Hex Collet Block Chuck with Standard Closer - 34-976-1
5C Collet Block Chuck - Hex with Standard Closer
Series 5C, 1/16 to 1-1/8" Collet Capacity, Horizontal Collet Block Chuck, Manually Activated
Features:
- Uses all standard 5C type collets
- Made with square and hex bodies
- Used for machining round, square, or hex shaped parts or cross drilling at 60° or 90° intervals
- Blocks are supplied with standard ring closer
- Quick acting cam lever closer available, optional.
- Blocks can be held directly on a magnetic chuck or in a vise
- Hardened tool steel
- Capacity: 1/16" - 1-1/8"
- Accuracy: Precision ground square and parallel to ±0.0005"
Specifications:
| Fixture Style | Collet Block Chuck |
| Activation Method | Manual |
| Minimum Collet Capacity (Inch) | 1/16 |
| Maximum Collet Capacity (Inch) | 1-1/8 |
| Orientation Type | Horizontal |
| Collet Series Compatibility | 5C |
