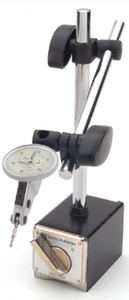

Interapid Dial Test Indicator 312B-1 & Magnetic Base Package - 312B-150

Interapid Dial Test Indicator 312B-1 & Magnetic Base Package

Interapid Dial Test Indicator

Interapid Horizontal Swiss Test Horizontal Indicator 312B-1

74.111370

Graduation: .0005"
Capacity: .060"

Point Length: 11/16"
Dial Diameter: 1-1/2"

Interapid, international acclaimed as the finest test indicators, are made in Switzerland to traditional precision and perfection.

• Inclined dial for easier reading.
• Exceptional sensitivity and responsiveness.
• Very light measuring pressure.
• Ball bearing contact point pivot and jewelled mechanism.
• Automatic reversing contact point, swivelling through 210º, vertical models 190º.
• Revolution counter.
• One piece, solid case for maximum rigidity.
• Universal swivel stem 5/32" diameter and two dovetails (vertical models one dovetail) for convenient mounting.
• Includes .080" carbide contact point, metric models 2mm, chrome plated.
• Complete with contact point wrench in fitted case.

Magnetic Base (Imported)

• 150 pounds of pulling power.
• Back rails and bottom surface are surface ground square and paralle to within .001"
• Base can be mounted vertically as well as horizontally.
• With fine adjustment.
