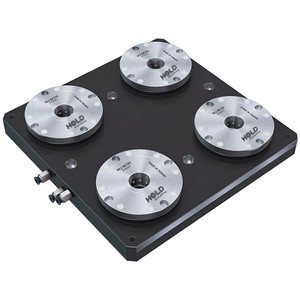

Hold Everything 4-Way Zero Point Clamp Station (200mm Center) FJ-AB11 - Type 130 Chuck - 4S45CM-130P200
Brand: Hold Everything- SKU:
- 4S45CM-130P200
- ID:
- 699199
$3,941.95
Hold Everything 4-Way Zero Point Clamp Station (200mm Center) FJ-AB11 - Type 130 Chuck - 4S45CM-130P200
Features:
- Quick-Change Work Fixturing - Type 130 Chuck
- Spring-Loaded System
- Pneumatically Opening
Technical Data:
- Dimensions: 360mm x 360mm x 60mm
- Material: Chuck: 440C Stainless Steel
- Base: 1045 with Black Oxide
- Pull-Down Force: 10 kN (No Air)
- Pull-Down Force: 24 kN (With Air)
- Unlocking Force: 168 kN
- Air Connection: QTY: 3 - Ø 8mm (5/16")
- Actuation Pressure: 6 bar (87 psi) Minimum
- Repeat Accuracy: < 0.005mm (0.0002")
- Weight: 36 kg (79.4 lbs)
What's Included:
- QTY 4 - Type 130 Chucks Installed on Base
- QTY 1 - Rotary Hand Valve (4 Way / 3 Position)
- QTY 4 - Lifting Eye Bolts
- Zero Point System Instruction Manual
| Type | Dimension (mm) | Weight (kg) | |||||||
| A | B | C | D | E | F | G | H | ||
| FJ-AB11 | 200 | 360 | - | 40 | 20 | 16 | 9 | 60 | 36 |
| FJ-AB20 | 250 | 395 | - | 55.5 | 143 | 15 | 15 | 60 | 43 |
