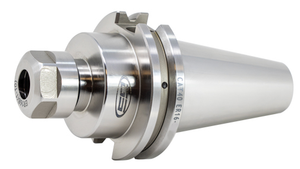

GS Tooling CAT40 3.50" ER16 Collet Chuck - 531408
Brand: GS Tooling- SKU:
- 531408
- ID:
- 749259
$183.95
GS Tooling CAT40 3.50" ER16 Collet Chuck - 531408
- Shank Type: Taper Shank
- DIN Coolant option - standard
- All Ground Body
- Factory Balanced to save spindle life, tool life and increased productivity
- Threaded through holes for a back-up screw (tool stop) or coolant through when removed
- Wrench not included
- Premium balanced to G2.5 @ 30,000 rpm
| Minimum Collet Capacity | 0.019" |
| Maximum Collet Capacity | 0.406" |
| Balanced to (RPM) | 30000 |
| Collet Nut Diameter | 1.26" |
| Seat Depth | 0.87" |
| Tightening Torque (Nm) | 56.9 |
For More GS Tooling CAT40 ER Collet Chucks Click Here
