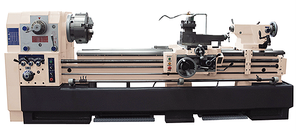

GMC High Precision Gap Bed Lathes
Standard Features:
- ISO 9001 certified
- Made in Taiwan
- Large spindle bore 4-1/8”
- Heavy Duty spindle D1-11
- Heavy Duty main motor 15 HP
- 12 spindle speeds from 13 to 1,200 rpm
- 44 kinds of inch threads, and 39 kinds of metric threads
- Threading and feeding rate change without changing gears
- Spindle is balanced, hardened and precision ground
- Spindle is supported at 3-point by high precision bearings
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- Hand oil pump on apron for all guide ways lubrication
- Power source: 220V/208V, 3 phase ( 440V/460V is optional )
Standard Equipment:
- 12” 3-jaw chuck
- Follow rest
- Halogen light
- Tool box with tools
- Operation manual
- Parts manual
- 16” 4-jaw chuck
- Removable gap
- Full Coolant System
- 14” Face Plate
- 4-Way way tools post
- Thread chasing dial
- 1”-8” rest
- Foot Brake
- Carriage stop system
Optional Equipment:
- Taper turning attachment
- 8” to 16” steady rest
- 15” 3-jaw chuck
- DRO
- Full length rear splash guard
Specifications
All Models Include:
- Width of Bed: 15-3/4”
- Spindle Bore: 4-1/8”, D1-11
- Taper of Spindle Center: M.T.#5
- Spindle Speeds 13-1,200RPM/12 Steps
- Longitudinal Feeds: 0.0014-0.039 IPR, 36 kinds
- Cross Feeds: 0.0007-0.02 IPR, 36 kinds
- Inch Threads: 72-2 TPI, 44 kinds
- Metric Threads: 0.2-14mm, 39 kinds
- Max. Travel of Top Slide: 7-1/2”
- Diameter of Tailstock Quill: 2-15/16”
- Max. Travel of Tailstock Quill: 7”
- Taper of Quill Center: M.T.#5
- Main Motor & Coolant Pump Motor: 15 HP, 220V or 440V, 3 Phase prewired on 220V
| Model | GML-2280T | GML-22100T | GML-22120T | GML-22160T | GML-2680T | GML-26120T | GML-26160T |
| Max. Swing Over Bed | 22" | 22" | 22" | 22" | 26" | 26" | 26" |
| Max. Length of Workpiece | 80" | 100" | 120" | 160" | 80" | 120" | 160" |
| Max. Swing Over Cross | 13" | 13" | 13" | 13" | 17-1/2" | 17-1/2" | 17-1/2" |
| Max. Swing in Gap | 30-7/8" | 30-7/8" | 30-7/8" | 30-7/8" | 35-7/16" | 35-7/16" | 35-7/16" |
| Max. Travel of Cross Slide | 12" | 12" | 12" | 12" | 14" | 14" | 14" |
| Machine Weight approx. | 5350 lbs | 5950 lbs. | 6850 lbs. | 8650 lbs. | 5850 lbs. | 7650 lbs. | 8650 lbs. |
| Overall Dimensions | 91" x 42" x 59" | 115" x 42" x 59" | 127" x 42" x 59" | 127" x 42" x 59" | 91" x 43" x 61" | 115" x 43" x 61" | 127" x 42" x 61" |
For more info, visit www.p65warnings.ca.gov.
| Item Number | Description | Price | Quantity |
|---|---|---|---|
| GML-22100T | GMC High Precision Gap Bed Lathe 22" x 100" | $ 29,051.50 | |
| GML-22120T | GMC High Precision Gap Bed Lathe 22" x 120" | $ 32,931.50 | |
| GML-22160T | GMC High Precision Gap Bed Lathe 22" x 160" | $ 34,871.50 | |
| GML-2280T | GMC High Precision Gap Bed Lathe 22" x 80" | $ 44,677.50 | |
| GML-26120T | GMC High Precision Gap Bed Lathe 26" x 120" | $ 38,928.00 | |
| GML-26160T | GMC High Precision Gap Bed Lathe 26" x 160" | $ 52,995.00 | |
| GML-2680T | GMC High Precision Gap Bed Lathe 26" x 80" | $ 37,995.00 |
