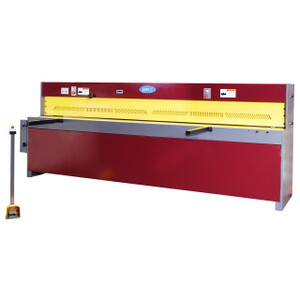

GMC Electrical Power Shear, 10 ft. x 14 Ga., with 26" Manual Back Gauge - EPS-1014M
Brand: GMC- SKU:
- EPS-1014M
- ID:
- 385561
| Blade Length | 120" |
| Cutting Capacity | 14 Ga. |
| Motor | 7-1/2 HP, 220V/440V, 3-Phase |
$25,128.00
GMC Electrical Power Shear, 10 ft. x 14 Ga., with 26" Manual Back Gauge - EPS-1014M
(Replaces the GMC HS-1014)
Model # EPS-1014M
10' x 14 Ga, 7-1/2 HP, 220V/440V, 3 ph
Standard Features:
- ISO 9001 certified
- American design and Taiwan quality machine
- HD all steel construction for maximum rigidity
- Precision driven gearbox
- Full length 26 strokes per minute
- 60” long squaring arm with inch / mm scale
- spring hold-downs
- high grade carbon/chrome alloy steel blades and hardened to 62 hrc, 2-edge indexable upper blade and 4-edge indexable bottom blade
- Full length with full view finger guard
- Front supports and (2) side gauges
- Safety type foot pedal control
- Jog, single continuous auto operation modes
- One year warranty for parts
Standard Equipment:
- 26" manual back gauge with one side operated handwheel.
- 60" long squaring arm with inch / mm scale, mounted on right side of the table
- 2 each 24” front support arms
- full length finger guard
- Removable safety foot pedal control
- One set of upper & lower blades
Optional Equipment:
- Safety fence for enclosure of the back side of the machine: $1,150.00
Specifications:
| Model | EPS-1014M |
| Cutting capacity - Mild Steel | 10' x 14 Ga |
| Cutting capacity - Stainless Steel | 10' x 18 Ga |
| Blade Length | 10' 1" |
| Strokes per Minute | 26 |
| Worktable Height | 30-1/2" |
| Front Support Arm | 24" |
| Back Gauge | 26" Manual Back gauge |
| Blade Rake Angle | 2.0 degree |
| Main Motor | 7-1/2 HP, 220V / 440V, 3 phase |
| Machine Weight | 7280 LBS |
| Machine Dimensions | 147" x 57" x 53” |
