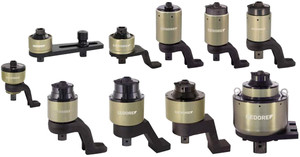

Gedore Torque Multipliers DREMOPLUS ALU
Features:
- The slender, lighter structure of the appliances ensures convenient and safe working - even where conditions are particularly cramped
- Repetition-accurate and precise results - supported by individual factory test certificates - ensure a maximum degree of job safety
- In-house development and 3D simulation (using the latest design and analysis methods such as 3D CAD / CAM / FEM)
- Especially when unloosening seized screw connections, minimised impacts on the tooth flanks appear in a low backlash planet gear. The greater the precision with which the components fit together, the more stable the overall structure and the longer the service life. This precision can only be assured by a high in-house manufacturing proportion and consistent quality checks. The production depth of the components at GEDORE is far more than 90%.
- High degree of resilience and long life of the appliances attributable to a low backlash planet gear with Ceramic-Teflon® coating.
- A 30 % + lighter steel housing thanks to the use of high-performance aluminium.
- Each torque multiplier is examined as to its torque range at the factory and provided with an individual factory test certificate.
- Precise, reliable figures - even under extreme climatic conditions
- Easy to operate: The most common INPUT/OUTPUT torques on the torque multiplier
Specifications:
| Item Number | DVI-20L | DVI-20Z | DVI-28L | DVI-28Z |
| Code Number | 2653249 | 2653265 | 2653257 | 2653273 |
| Range Nm | 500 - 2000 Nm | 500 - 2000 Nm | 500 - 2800 Nm | 500 - 2800 Nm |
| Accuracy | ± 3% | ± 3% | ± 3% | ± 3% |
| Drive | 3/4" | 3/4" | 3/4" | 3/4" |
| Output Drive | 1" | 1" | 1" | 1" |
| Ratio | 1:04 | 1:04 | 1:5,5 | 1:5,5 |
| Reaction Arm | L | Z | L | Z |
| Anti-wind-up Ratchet | No | No | No | No |
| Overload safety mechanism | ||||
| Sun Gear | No | No | No | No |
| Shearing Square | Yes | Yes | Yes | Yes |
| Slipper non-destructive | No | No | No | No |
| Ceramic-Teflon Coating | No | No | No | No |
| Item Number | DVV-13Z | DVV-40ZRS | DVV-60ZRS |
| Code Number | 2653370 | 2653109 | 2653117 |
| Range Nm | 250 - 1300 Nm | 500 - 4000 Nm | 700 - 6000 Nm |
| Accuracy | ± 3% | ± 3% | ± 3% |
| Drive | 1/2" | 1/2" | 3/4" |
| Output Drive | 3/4" | 1" | 1-1/2" |
| Ratio | 1:05 | 1:16 | 1:18 |
| Reaction Arm | Z | Z | Z |
| Anti-wind-up Ratchet | No | Yes | Yes |
| Overload safety mechanism | |||
| Sun Gear | Yes | No | No |
| Shearing Square | No | No | No |
| Slipper non-destructive | No | Yes | Yes |
| Ceramic-Teflon Coating | No | Yes | Yes |
Click to View More Information & Specifications on the DREMOPLUS ALU Torque Multipliers
