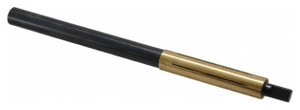

Flexolap, Barrel/Through-Hole Lap, 15/32" Diameter - 87-727-4
Brand: Acro Laps- SKU:
- 87-727-4
- ID:
- 96102
| Type | Barrel/Through-Hole Lap |
| Diameter | 15/32" |
| Lap Length | 6.25" |
| Barrel Length | 2.25" |
| Arbor Dia | 0.425" |
$21.95
Flexolap, Barrel/Through-Hole Lap
15/32" Diameter
Made in USA
15/32 x 6-1/4" Through-Hole Lap
15% Max Expansion, 2-1/4" Barrel Length, 0.425" Arbor Diam, Eccentric Slot
Features:
- Instantly and accurately adjustable for fast cutting and polishing.
- The longer cylindrical lapping surface and easy adjustment insure greater precision and longer life.
- The brass cylinder, in either the barrel or blind-hole type, is made with a series of longitudinal slots milled "off-center" to permit sensitive expansion up to 15% by simply turning the adjusting screw.
- This construction will enable you to lap rounder, straighter holes plus save valuable time.
Specifications:
| Lap Type | Barrel/Through-Hole Lap |
| Lap Diameter (Inch) | 15/32 |
| Slot Type | Eccentric |
| Lap Length (Inch) | 6-1/4 |
| Lap Length (Decimal Inch) | 6.25 |
| Maximum Expansion (Percentage) | 15 |
| Barrel Length (Inch) | 2-1/4 |
| Barrel Length (Decimal Inch) | 2.25 |
| Arbor Diameter (Decimal Inch) | 0.425 |
See all Flexolaps, Made in USA
