Flexbar LiteSurf™ Surface Roughness Tester & Accessories
- The new LiteSurf™ system from Flexbar features integrated Bluetooth and USB connection to Android Smartphones, Tablets and PC’s allowing a quick and easy way to transmit surface roughness measurements. Thanks to the included Roughness Studio Basic APP, information can easily be stored and shared with the rest of the world.

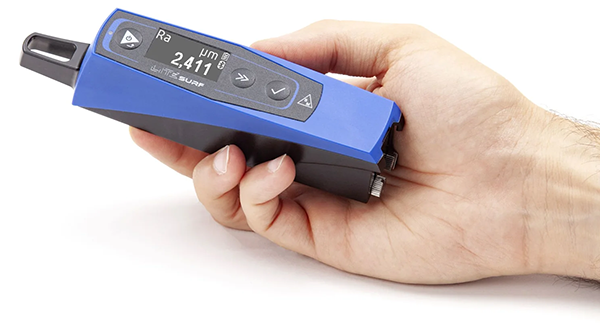

- With this sophisticated hand-held instrument it is possible to measure surface roughness details in multiple positions horizontally, vertically, below and above. Through use of the 90 degree laterally rotatable preloaded probe, each area of the piece is measurable. A range of Interchangeable Accessory Probes are also available for special measurement applications.
- The body of the LiteSurf™ is machined from a solid block of a light alloy and combines an ABS plastic shell that guarantees high rigidity with high impact resistance. The device’s integrated refill management system guarantees an autonomy of 10 hours of work time and at least 300 measurements within a 50 minute period.
Model No. 15510 complete system includes: LiteSurfTM roughness tester, USB charger, USB type C cable, 8mm diameter tail piece for mounting on the stand, roughness specimen with calibration certificate, transport case, manual
Specifications:
- Dimensions: 6.3 x 1.34 x 1.32 in (160 x 34 x 33,5 mm)
- Measuring range: 250 μm (+ 50 μm - 200 μm) 0.01 in (+0.002 in - 0.008 in)
- Resolution: 0.04 minch (0.001 μm)
- Accuracy class: 1° ISO/DIN
- Cut-off length: 0.01 - 0.03 - 0.1 in (0,25 – 0,8 - 2,5 mm)
- Probe: Optical transduction system, 90° rotable for lateral measurements 8 parameters (on board) ISO: Ra, Rq, Rt, Rz, Rc, Rmax, RSm, RPc, MOTIF: Pt, R, AR, Rx, Ppc
- Exploration travel: Until 0.7 in (17.5 mm)
- Measurement parameters: 44 parameters (with APP Roughness Studio PREMIUM) ISO: Ra, Rq, Rt, Rz, Rp, Rv, Rc, Rsk, Rku, RSm, RΔq, RΔa, Rmax, Rdc, Rmr, RPc, RLo, Rlr, Rzjis, RHSC, R3z, hp, Ep JIS: Ra, Rq, Ry, RzJIS, tp, RSm, S
ASME: Rp, Rpm, RPc, Rsk, tp
MOTIF: R, AR, Rx Rke, Rpke, Rvke, Mr1e, Mr2e, A1e, A2e - Interface: Monochrome OLED display and 3 waterproof membrane buttons
- Language: Italian, French, English, German, Spanish, Portuguese
- Memory: Approx.18000 parameters only (0.03 x 5 in) - Approx.30 with profile (0.03 x 5 in)
- Autonomy: 10 hours of work and at least 300 measurements
- Connectivity: Integrated Bluetooth and USB, connection to Smartphone, Tablet and PC
