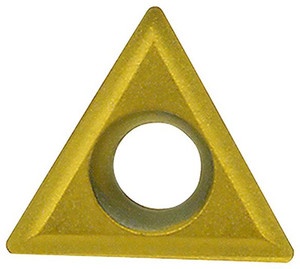

Everede Indexable Carbide Turning Insert, 60° Triangle TPGH-231, 0.031" Radius, Grade TL120
Brand: Everede Tool- SKU:
- 24-570-620
- ID:
- 243697
For Boring Bar | Series C |
Shape | 60° Triangle |
Insert Number | TPGH-231 |
Radius | 0.031" |
Grade | TL120 |
$15.95
Everede Indexable Carbide Turning Insert, 60° Triangle TPGH-231, 0.031" Radius, Grade TL120
60° Triangle - TPGH - For Series C Boring Bars - .250" I.C., .096" Thick, 11° Relief
Features:
- 60° Triangle Shaped Indexable Inserts
- Versatile and dependable, "T" shaped inserts are one of the most popular shapes in the industry
- Negative inserts can provide up to 6 cutting edges
- Available in multiple chipbreakers, grades and from different manufacturers
Specifications:
BRAND | EVEREDE |
INSERT SHAPE & ANGLE | 60° Triangle |
TOOL MATERIAL | Carbide |
INSERT STYLE | TPGH |
INSERT SIZE | 2(1.5)2 |
GRADE | TL120 |
INSERT IC | 1/4" |
INSERT THICKNESS | 3/32" |
INSERT RADIUS | 0.031" |
RELIEF ANGLE | 11° |
COATING | PVD / TiAlN |
ANSI | TPGH2(1.5)2 TL120 |
DESIGNATION | TPGH-231 TL120 |
INSERT # | TPGH-231 |
ISO | TPGH110208 TL120 |
INSERT SHAPE | 60° Triangle |
ISO K CAST IRON | X |
ISO M STAINLESS STEELS | X |
ISO P STEEL | X |
ISO S HRSA EXOTIC | X |
MODEL # | TPGH-231-TL120 |
WEIGHT | 0.010 lbs. |
COUNTRY OF ORIGIN | UNITED STATES OF AMERICA |
See all Everede Indexable Carbide Turning Inserts
View more boring bars, cutting tools & carbide inserts from Everede Tool Company
