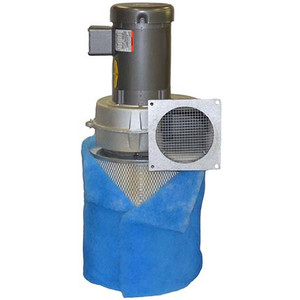

Electra-Kool™ Model 1000 Centrifugal Blower, Filter: HEPA, 3-Phase - 10296
Brand: Electra-Kool- SKU:
- 10296
- ID:
- 679606
Electra-Kool™ Model 1000 Centrifugal Blower, Filter: HEPA, 3-Phase - 10296
An Electra-Kool™ industrial blower is the perfect solution for cooling & ventilating your electrical cabinet, DC motor, or other industrial area while keeping fine dust and dirt out. Prevent internal components and electrical enclosures from malfunctioning due to excessive heat or dust. Electra-Kool™ is a fraction of the price of an air conditioner and or compressed air device, saving you both operating and maintenance costs for years.
Electra-Kool Filtered Blowers are a low-cost alternative to both air conditioners and compressed air systems. By delivering clean, filtered ambient air to your electrical enclosure, Electra-Kool blowers prevent factory down-time at a fraction of the cost.
Electra-Kool blowers have reliably kept electrical equipment clean and cool since their launch. Trusted by industrial customers everywhere and always in stock.
Electra-Kool Features:
- Simple "bolt-on" design. Secured easily with nuts and bolts. Filters are also easily swapped out with a simple wing-nut.
- High-Efficiency motors made in the USA - lower your operating costs significantly.
- Prevents microscopic dust particles from damaging your electrical components with our pleated paper filters (99.9% efficiency @ 0.5 Microns) or HEPA filters (99.97% @ 0.3 Microns).
- Pre-filter wraps that extend the life of the primary filter
- Mesh finger-guards on both the intake and outlet - Safety First.
Accessories & Options:
- All Electra-Kool blower systems come with louvered vents for hot air release, a thermometer for internal temperature monitoring, and an air deflector plate to direct air toward a hot spot.
- Polyester (medium filtration) or metal mesh (coarse filtration) filters also available.
- FilterKits are available for adding our filters to filterless blowers, Electra-Kool or other.
ELECTRA-KOOL™ 1200 CFM INDUSTRIAL BLOWER FEATURES:
- Enclosures 200-500 Cubic Feet
- 1 Phase: Draws 11.8/5.9 Amps
- 3 Phase: Draws 2.8/1.4 Amps
- 1180-1200 CFM of air flow.
- Recommended capacity: 500 cubic foot enclosure OR 125 HP DC motor
- 28" height, 13" deep, 15" wide
- Rugged cast aluminum housing
- Heavy-Duty Steel Impeller
- 6.5" square flange (6" hole to hole) that mounts easily to the side or top of any enclosure
- Long lasting filter life due to huge surface area… 95 SQ FT
- Simple assembly: Filters require just one wingnut – great for quick cleaning
- Finger-guards installed on both the inlet and outlet for your safety
- One year manufacturing warranty – just in case.
MODEL 1000 MOTOR SPECIFICATIONS:
Single Phase:
- 1 HP, 3450 RPM, 56C Frame, Capacitor Start
- 115/208-230V, 60Hz TEFC
- Amps: 11.8 @ 115V, 6.3 @ 208V, 5.9 @ 230V
- UR & CSA Listed
Three Phase:
- 1 HP, 3450 RPM, 56C Frame
- 208-230/460V, 60Hz TEFC
- Amps: 3.0 @ 208V, 2.8 @ 230V, 1.4 @ 460V
- UR & CSA Listed
| 3 PHASE PART # | SINGLE PHASE PART # | FILTER | HEIGHT | WIDTH | DEPTH | ACCESSORIES |
| 10292 | 10290 | Pleated Paper (fine) | 28" | 15" | 13" | Prefilter Wrap, 4 Louvered Vents, Digital Thermometer, 1 Air Deflector Filter Mounting Hardware |
| 10297 | 10029 | Metal Mesh (coarse) | 28" | 15" | 13" | Filter Mounting Hardware Only |
| 10288 | 10286 | Polyester (medium) | 28" | 15" | 13" | Prefilter Wrap Filter Mounting Hardware |
| 10296 | 10294 | HEPA (very fine) | 28" | 15" | 13" | Prefilter Wrap, 4 Louvered Vents, Digital Thermometer, 1 Air Deflector Mounting Hardware |
| 10045 | 10210 | NONE | 15" | 15" | 13" | Filter Mounting Hardware Only |
View the Model 1000 Cut Sheet
See all versions and accessories for the Electra-Kool™ Model 1000 Centrifugal Blower
