Earth-Chain ECB Magnetic Workholding Vises
Versatile Magnetic Workholding Solution for CNC Machining
It's easy to perform complex 5-sided machining using the MagVISE. You can even machine on 5 sides while holding a large number of workpieces using an array of MagVISE blocks. The machinable soft jaws permit workpiece nesting for improved accuracy over other workholding systems. Also, you can machine right through the part without affecting the workholding.
Features:
- Powerful magnetic workholding
- FASTEST - load and unload
- Reduce set-up times
- Machine 5-sides easily
- Machinable soft jaws
- Modular system grows with you
- No workpiece distortion
- Better accuracy and repeatability
- Use on pallet or machine bed
- Maintenance free
- Stop plates are included to help align small parts and machine them more accurately
- Hardened to HRC 55 - 18 hardened points keep top and bottom surfaces parallel.
MagVISE Workholding
The MagVISE line of Magnetic Workholding solutions is revolutionizing production of all types of applications:
- Automotive industry
- Electrical industry
- General construction
- Rail production
- Paper industry
ECB Vise Advantages:
- Powerful rare-earth magnets deliver up to 4,620 lbs. of holding power per vise
- Reduce setup time by 50% or more
- Eliminate workpiece deformation
- Machine freely on 5-sides
- Arrange vises as needed
- Custom setups for complex parts
MagVISE ECB Ordering Information:

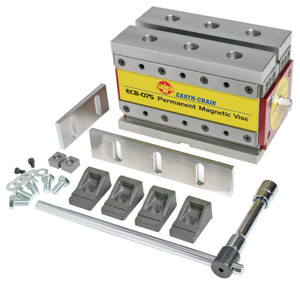

4 sizes available. Each ECB vise includes two induction blocks, wrench, extension and socket, switch-connect socket assembly, 2 stop plates, and 4 toe clamps.
| Item Number | L x W x H | A | B | Min. Stock Thickness | Holding Power | Weight |
| ECB-050 | 5" x 3" x 3" | 0.47" | 0.47" | 0.4" | 1100 lbs. | 15 lbs. |
| ECB-070 | 6.8" x 3" x 3" | 0.47" | 0.47" | 0.4" | 1650 lbs. | 19 lbs. |
| ECB-120 | 7.3" x 4.2" x 4.2" | 0.62" | 0.59" | 0.6" | 2640 lbs. | 40 lbs. |
| ECB-210 | 9.2" x 5.2" x 5.3" | 0.65" | 0.84" | 0.8" | 4620 lbs. | 80 lbs. |
Holding power depends on workpiece size, material, surface finish, contact area with magnet, and workpiece thickness.
Induction Blocks:
Use induction blocks at all times to prevent damage to the face of the magnetic vise. You can easily modify induction blocks to adapt your setup to part requirements.
After installing your ECB vise we recommend cleanup-milling the surface of your induction blocks before loading your work piece to ensure that the surface height is uniform & parallel to the spindle.
Please note: Spring loaded blocks are NOT machineable. Solid blocks ARE able to be drilled and machined as required.
# EEPM-SPF - Soft fixed induction block, 8mm screw - use with ECB-SP50 spring blocks. 1.97" x 1.97" x 1.23" (L x W x H)
# EEPM-SP - Spring loaded induction block, 8mm screw - use with ECB-SPF50 on corners. 1.89" x 1.89" x 1.41" (L x W x H)
