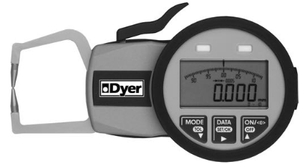

Dyer Short Reach Electronic Thickness Gage, Contact Point 2 - 653-502

Dyer Short Reach Electronic Thickness Gage, Contact Point 2 - 653-502

• Fast, accurate, repeatable.
• Light weight.
• SPC output for USB or Mitutoyo devices. Cables offered separately.
• Absolute and Relative modes with Min, Max and Hold programs.
• Tolerance limit markers with Green/Red LED for visual operator judgement.
• Internal memory that holds a maximum of 80 measured values.
• Programmable auto shut off for battery savings.
• Application Range: 0-0.39”/0-10mm.
• Graduation: 0.0002”/0.005mm.
• Length L: 1.37”
• IP 67. Gages are shop rugged.
• Analog segment (fan) display.
• Keypad lock.

Maximum Measuring Accuracy:

• Linear Accuracy at ± 0.0004"
• Repeatability ± 0.0002"
