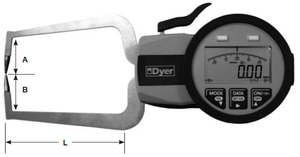

Dyer Electronic Thickness Gage, Contact Point 4 - 653-004

Dyer Electronic Thickness Gage, Contact Point 4 - 653-004

• Fast, accurate, repeatable.
• Light weight.
• SPC output for USB or Mitutoyo devices. Cables offered separately.
• Absolute and Relative modes with Min, Max and Hold programs.
• Tolerance limit markers with Green/Red LED for visual operator judgement.
• Internal memory that holds a maximum of 80 measured values.
• Programmable auto shut off for battery savings.
• Application Range: 0–0.8" 0–20 mm
• Graduation: 0.0005" 0.010 mm
• Length L: 3.15" 80 mm IP 67. Gages are shop rugged.
• Analog segment (fan) display.
• Keypad lock.

Maximum Measuring Accuracy:

• Linear Accuracy at ± 0.001"
• Repeatability ± 0.0005"/0.010 mm
