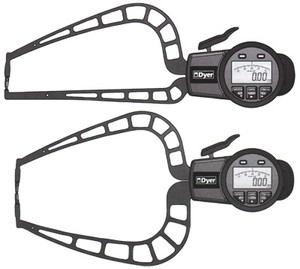

Dyer Electronic Long Range Thickness Gages
Maximum Measuring Accuracy
- 656 Series with 6.5" Reach
- Gage R & R Capable
- Linear Accuracy: ±0.002" (0.050mm)
- Repeatability: ±0.001" (0.025mm)
- Reach: 6.5" / 167mm
- Graduation Inch/Metric: 0.001"/0.020mm
Features:
- Fast, accurate, repeatable.
- Light weight. Keypad lock.
- SPC output for USB or Mitutoyo devices. Cables offered separately.
- Absolute and Relative modes with Min, Max. and Hold programs.
- Tolerance limit markers with Green/Red LED for visual operator judgement.
- Internal memory that holds a maximum of 80 measured values.
- Programmable auto shut off for battery savings.
- IP67. Gages are shop rugged.
- Analog segment (fan) display.
- Wireless data option.
Click to view a PDF of Gage Dimensions
For more info, visit www.p65warnings.ca.gov.
| Item Number | Description | Range | Dim. A | Dim. B | Contact Point Type | Price | Quantity |
|---|---|---|---|---|---|---|---|
| 656-103 | Electronic Thickness Gage | 0 - 2" / 0 - 50mm | 1.18" / 30mm | 1.18" / 30mm | R0.030" Chisel / R0.75 Chisel | $ 1,395.00 | |
| 656-104 | Electronic Thickness Gage | 0 - 2" / 0 - 50mm | 1.18" / 30mm | 1.18" / 30mm | 0.118" Ball / 3mm Ball | $ 1,395.00 | |
| 656-107 | Electronic Thickness Gage | 0 - 2" / 0 - 50mm | 1.18" / 30mm | 0.18" / 4.6mm | Top Chisel / Bottom Ball | $ 1,395.00 | |
| 656-108 | Electronic Thickness Gage | 0 - 2" / 0 - 50mm | 1.18" / 30mm | 0.18" / 4.6mm | Top Chisel / Bottom Ball | $ 1,395.00 | |
| 656-134 | Electronic Thickness Gage | 0 - 2" / 0 - 50mm | 2.83" / 72mm | 1.18" / 30mm | 0.196" Ball / 5mm Ball | $ 1,395.00 | |
| 656-204 | Electronic Thickness Gage | 2 - 4" / 50 - 100mm | 1.18" / 30mm | 0.90" / 23mm | 0.196" Ball / 5mm Ball | $ 1,395.00 | |
| 656-304 | Electronic Thickness Gage | 4 - 6" / 100 - 150mm | 1.18" / 30mm | 0.90" / 23mm | 0.196" Ball / 5mm Ball | $ 1,395.00 |
