Dyer Electronic Long Range Thickness Gage, 0- 2"/0-50mm - 656-104
Brand: DyerGage- SKU:
- 656-104
- ID:
- 311570
Range | 0 - 2" / 0 - 50mm |
Dim. A | 1.18" / 30mm |
Dim. B | 1.18" / 30mm |
Contact Point Type | 0.118" Ball / 3mm Ball |
$1,395.00
Dyer Electronic Long Range Thickness Gage
0- 2"/0-50mm - 656-104
Maximum Measuring Accuracy
- 656 Series with 6.5" Reach
- Gage R & R Capable
- Linear Accuracy: ±0.002" (0.050mm)
- Repeatability: ±0.001" (0.025mm)
- Reach: 6.5" / 167mm
- Graduation Inch/Metric: 0.001"/0.020mm
Features:
- Fast, accurate, repeatable.
- Light weight. Keypad lock.
- SPC output for USB or Mitutoyo devices. Cables offered separately.
- Absolute and Relative modes with Min, Max. and Hold programs.
- Tolerance limit markers with Green/Red LED for visual operator judgement.
- Internal memory that holds a maximum of 80 measured values.
- Programmable auto shut off for battery savings.
- IP67. Gages are shop rugged.
- Analog segment (fan) display.
- Wireless data option.
Click to view a PDF of Gage Dimensions
![Warning Icon](https://cdn11.bigcommerce.com/s-6vccrv70fh/images/stencil/original/image-manager/warning-icon-new.png?t=1709211126)
For more info, visit www.p65warnings.ca.gov.

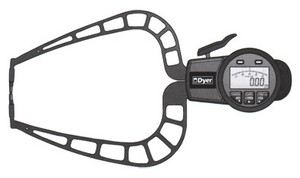

![Dyer Electronic Long Range Thickness Gage, 0- 2"/0-50mm - 656-104 Dyer Electronic Long Range Thickness Gage, 0- 2"/0-50mm - 656-104](https://cdn11.bigcommerce.com/s-4s9liwcv/images/stencil/300x300/products/311570/391276/dyer-656-104__96741.1565283796.jpg?c=2)
