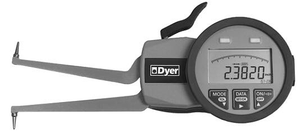

Dyer Electronic Groove Gage, 079"-1.58" Range - 651-103
Brand: DyerGage- SKU:
- 651-103
- ID:
- 362958
| Measuring Depth (L) | 3.3" 85 mm |
| Groove Depth (A) | 0.275" 7 mm |
| Groove Width (B) | 0.059" 1.5 mm |
$949.95
Dyer Electronic Groove Gage, 079"-1.58" Range - 651-103
- Fast, accurate, repeatable.
- Lightweight
- SPC output for USB or Mitutoyo devices. Cables offered separately.
- Absolute and relative modes with Min, Max and Hold programs.
- Tolerance limit markers with green/red LED for visual operator judgment
- Internal memory that holds a maximum of 80 measured values.
- Programmable auto shut off for battery savings.
- IP 67. Gages are shop rugged.
- Analog segment (fan) display.
- Keypad lock.
- Graduation: 0.0005”/0.01mm
- Contact Style: 0.039” (1mm) Carbide Ball
Measuring Accuracy:
- Gages with 0.4" Travel: Linear Accuracy ± 0.0004" Repeatability ± 0.0002"
- Gages with 0.8" Travel: Linear Accuracy ± 0.001" Repeatability ± 0.0005"
