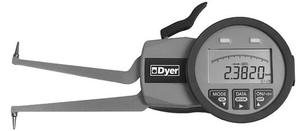

Dyer Electronic Groove Gage, 0.10"-0.49" Range - 651-100
Brand: DyerGage- SKU:
- 651-100
- ID:
- 362954
| Measuring Depth (L) | 1.37" 35 mm |
| Groove Depth (A) | 0.035" 0.9 mm |
| Groove Width (B) | 0.025" 0.6 mm |
$949.95
Dyer Electronic Groove Gage, 0.10"-0.49" Range - 651-100
- Fast, accurate, repeatable.
- Lightweight
- SPC output for USB or Mitutoyo devices. Cables offered separately.
- Absolute and relative modes with Min, Max and Hold programs.
- Tolerance limit markers with green/red LED for visual operator judgment
- Internal memory that holds a maximum of 80 measured values.
- Programmable auto shut off for battery savings.
- IP 67. Gages are shop rugged.
- Analog segment (fan) display.
- Keypad lock.
No. 651-100
- Graduation: 0.0002”/0.005mm
- Contact Style: Radius Chisel 0.004” (0.1mm)
Measuring Accuracy:
- Gages with 0.4" Travel: Linear Accuracy ± 0.0004" Repeatability ± 0.0002"
- Gages with 0.8" Travel: Linear Accuracy ± 0.001" Repeatability ± 0.0005"
For More Dyer Electronic Groove Gages 651 Series Click Here
