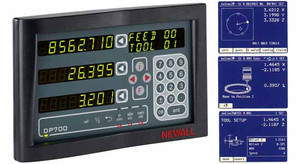

NEWALL Digital Readout DP700 for Mills, Lathes and Geometric Functions - DP703-4

NEWALL Digital Readout DP700 Packages for Mills, Lathes and Geometric Functions

12" x 30" x 6" Travel, 3 Axis w/Quill Milling Machine Package

Features:

Metal die-cast case.
Cap-sense keypad.
5.7" QVGA blue STN with CCFL backlight.
2,3 or 4 axes with optional rotary axis.
Half function
Absolute/incremental readings.
Switchable resolutions.
Home reference.
Feed rate display.
Multiple program storage.
Data preset/reset.
Tool path graphics in real time.
Probe co-ordinate readings.
Programmable memory With graphical presentation.
Insert/delete sub data.
Teach mode with graphics.
Zero approach warning.
Sleep/data hold.
Navigation keys.
Zoom.
Intuitive help
Job timer.
Touch probe option.
Calculator with trig functions.
Tap drill library.
Linear error compensation.
Segmented error compensation.
Vibration keystroke entry.
USB-B program storage.

Turning Specific:

Taper calculation
Vectoring.
Tool offsets.
Axis summing.
Rad/dia.readings.


DP700 Feature Includes:

Feed Rate Display
Bolt Hole Circle Routine
Line Hole Routine
Arc Contouring
Taper Calculations
Programmable Memory/Teach
Polar Coordinates
Tool Offsets
Axis Vectoring/Summing
Linear and Segmented Error Comp.
RS232 Output • Undo
Languages: English, French, German, Spanish, Italian, Turkish, Czech, Russian, Portugues, Danish

CMM Inspection:

O.D. calculations with center find.
I.D. calculations with center find.
Skew. • Step. • Length
Datum find • Incline
Angle



Syherosyn Encoder Features:

IP67 rating (fully submersible), completely sealed.
Withstands dust, dirt, oil and other environmental conitions.
No mechanical wear charcteristics.
Requires no cleaning or maintenace.
No more broken or scratched glass.
Vibration and shock resistant.
