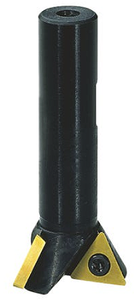

Dorian Tool Indexable 60° Dovetail End Mill, 1/2" Cutting Dia., 1 Insert - D60X-050-TD11-037
Brand: Dorian Tool- ID:
- 243066
| TDEX Insert | 110204 |
| Torx Screw | TS-25.45-6M1 |
| Torx Key | T7 |
| Overall Length | 2.390" |
$176.95
Dorian Tool Indexable 60° Dovetail End Mill, 1/2" Cutting Dia., 1 Insert - D60X-050-TD11-037
- Indexable three cutting edges per insert
- High rate of material removal
- High repeatability
- Dove tail milling
- Weldon shank.
- Right Hand
- Torx® screw locking system.
- A 90° slot must first be cut into the material allowing clearance for the dovetail neck during the final cut
- Precision machine alignment pad integrated into each pocket ensures repeatability
- Cutting Rake: 15° / Axial Rake +10° / Radial Rake 14°
