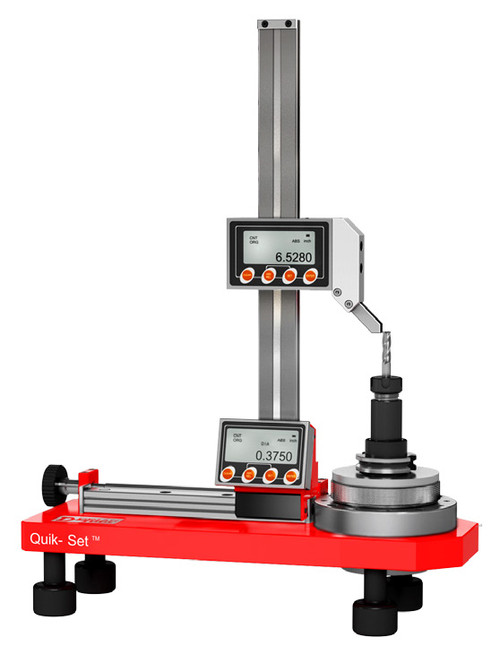

Dorian QuiK-SET Tool Presetter Z300
The QuiK-SET™ Tool Presetter is a precision instrument designed for speed and simplicity in manufacturing environments or tool cribs.
This model has been carefully designed to meet the needs of the CNC machine operator. Its portability and ruggedness make this the best presetter for small machining cells.
The pre-loaded recirculating ball bearing guide in the X-axis allows for accurate and smooth positioning to measure the tool's diameter, while the Z-axis display can be locked to preset tool lengths quickly and precisely.
Features:
- Heavy Duty Steel Base
- Reduces Setup Time
- Excellent Precision & Repeatability
- Absolute Incremental Mode
- Diameter/radius Mode
- Inch or Metric Reading
- Built For Shop Environment
- CAT, BT, HSK, ISO and VDI Interchangeable Sleeves
- Built For Shop Environment
Precision:
- Resolution: 0.0005" (0.10 mm)
- Accuracy: ± 0.0005" (0.10 mm)
- Repeatability: 0.0005" (0.10 mm)
- Axis Squareness: 0.0002" (0.005 mm) TIR
Hardware:
- All Heat Treated Components
- Recirculating Ball Bearing and Linear Guide
- Powered by AA Batteries
- Heavy Duty Steel Base
- CAT, BT, HSK, ISO and VDI Interchangeable Sleeves
Specifications:
| Order Number | 42001 |
| Model | Quik-SET Z300 |
| Height Capacity | 12.00" (300 mm) |
| Diameter Capacity | 10.00" (250 mm) |
| Resolution | 0.0005" (0.010 mm) |
| Accuracy | ±.0005" (0.010 mm) |
For more info, visit www.p65warnings.ca.gov.
| Item Number | Description | Price | Quantity | |
|---|---|---|---|---|
| 42001 | Dorian QuiK-SET Tool Presetter Z300 | - | $ 4,795.95 | |
| 42059 | Raised Platform Option | yes | Call For Pricing | - |
| 42066 | BT-30 Tool Sleeve | - | $ 799.95 | |
| 42068 | CAT/BT-40 Tool Sleeve | - | $ 585.00 | |
| 42070 | CAT/BT-50 Tool Sleeve | - | $ 649.95 | |
| 42078 | HSK-63A Tool Sleeve | - | $ 695.00 | |
| 42080 | HSK-100A Tool Sleeve | - | $ 1,595.00 |
