Digi-Pas DWL-3500XY 2-Axis High Precision Digital Machinist Level

Digi-Pas DWL-3500XY 2-Axis High Precision Digital Machinist Level

DWL3500XY is a 2-Axis High Precision Digital Level & Machinist Level with built-in Vibrometer.

These digital levels are embedded with advanced MEMS sensor technology, designed for professional & trade specialist to achieve high accuracy and simultaneous display of angular & vibration measurements.

These digital levels are capable of remote real-time data acquisition, logging & analysis when in sync with PC. It is highly effective when used for installation, setting up and maintenance of high precision CNC machines, test and measuring equipment.

Features:

	DUAL ANGLE DISPLAY Dual-Axis (X-Y) colour graphic display of angular & vibration measurements real-time digital & analogue display for angles & vibration monitoring, data logging & analysis
	HIGH PRECISION ANGLE MEASUREMENT High resolution of 0.01° angular measurement. USB PC links (Wireless link - optional) for remote data logging capability. Graphical display of real-time measuring data on device TFT LCD screen.
	VIBROMETER Built-in Vibrometer for real-time vibration monitoring, data logging & analysis. Graphical display of real-time measuring data on device TFT LCD screen.
	ANGLEMETER Built-in Anglemeter for real-time angle monitoring, data logging & analysis. Graphical display of real-time measuring data on device TFT LCD screen.
	ALTERNATE ZERO SETTING Enable user to measure relative angles at a common plane with respect to a reference angle. The reference angle can be set using alternate zero feature.
	ABSOLUTE LEVEL SETTING Enables user to perform absolute symmetry readings for both "front" & "reverse" (180 degrees) positions of any measurement angle.
	USER SELF CALIBRATION Easy self-calibration feature allows user to reset the digital level back to factory preset accuracy.
	USB LINK TO PC USB connection for remote acquisition, monitoring, data logging & analysis in computer.
	WIRELESS SYNC (OPTIONAL) Wireless connection (Bluetooth class 1) to device for remote monitoring, data logging & analysis from computer. (PRO PC sync software is required)
	PC SYNC SOFTWARE - BASIC EDITION Enable basic features for remote data acquisition on angular & vibration measurements.
	PC SYNC SOFTWARE - PROFESSIONAL EDITION (OPTIONAL) Enable advance features for remote data logging, processing & analysis on angular measurements. Specifically for precision machine operation performance optimization.

Benefits:

SPEED & PRECISION

• Instant 2-Axis concurrent digital display of high resolution 0.001°(18μm/M) of levelling & vibration measurements for time saving and quality professional works.

CLARITY

• Digital colour graphic & numeric display to enable real-time collection of digital angle levelling/alignment data for machine commissioning accountability & analysis.

EFFECTIVE

• The remote measurement USB connectivity provides advantages that traditional spirit level is difficult or unable to match. i.e. effectively, only one person is required to level/align a machine.

ACCREDITATION

• Product accuracy is verified by accredited 3rd party calibration & test service providers in USA, Japan, UK & Germany to conform with NIST, JIS, UKAS & DIN under ILAC & A2LA.

Technical Specifications:

• Measuring range from 0° ~ ±20.000° Single-Axis; 0° ~ ±10.000° Dual-Axis
• Resolution of 0.001° (≤ 18μm/M)(0.0002 in/Ft.)
• Accuracy: ± 0.001° at 0° to 2.000°; ± 0.003° at other angles
• Digital colour graphic display of dual angles
• Enable USB external power source
• VibroMeter display real time vibration graph
• AngularMeter display real-time angle graph
• Basic PC Sync software USB connection (5 Meters) to device for remote data display
• Professional PC Sync Software USB connection to device for remote data logging (Optional)
• Wireless Bluetooth Class 1 connection (approx. 30 Meters) from PC to device (optional)
• Operating temperature at -10°C to +50°C

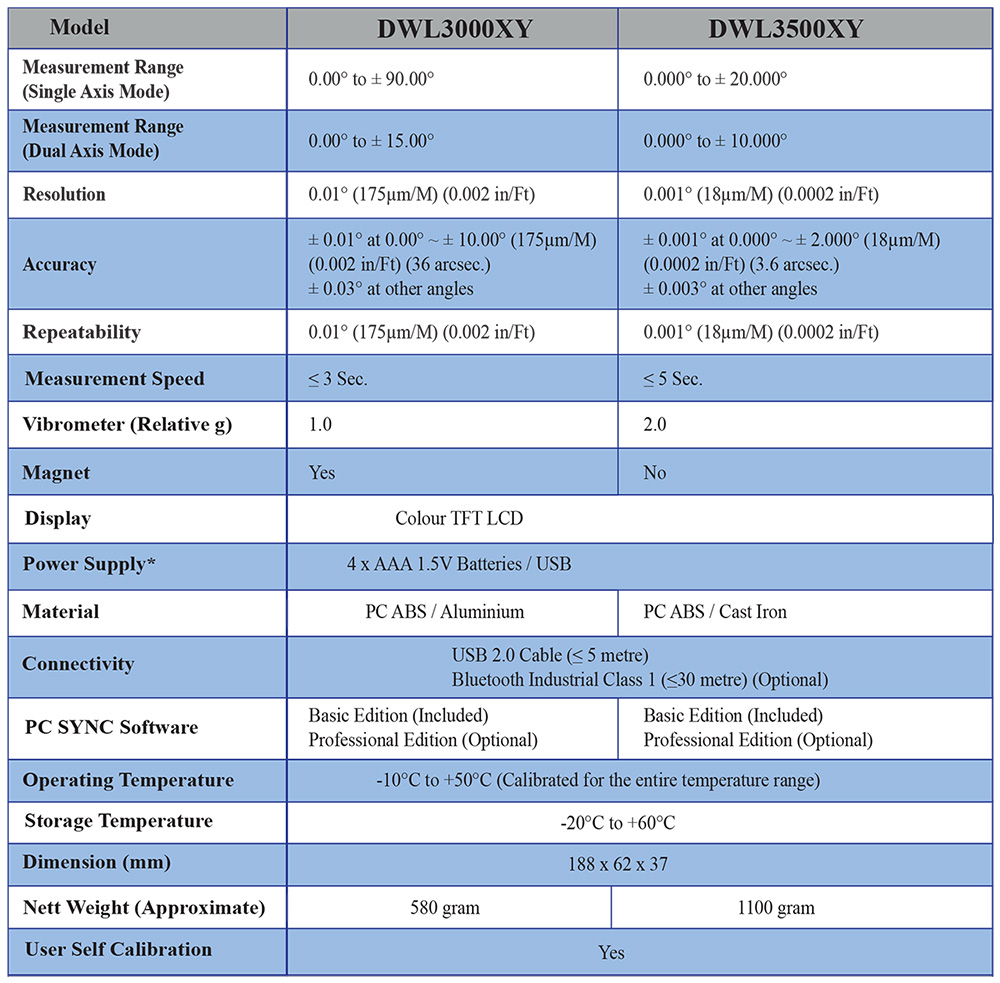

Click to View Specifications Table

Click to see Dimensional Drawing

Click to see Instruction Manual

View the PC Sync Professional Software for DWL-3500XY Level
