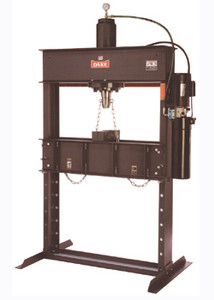

Dake 50 Ton Dura Press - DDP-500
Built tough for the metalworking craftsman. A press and a name you can depend on for your most difficult pressing applications. This substantial press has a heavy duty, arc-welded channel steel frame and a large 6" bore hydraulic cylinder. Operating pressure is low for long life and safety The new, easy to use "joystick" 4-way valve is standard equipment for precise ram control. If you need repeatability, the optional remote pressure control can be installed at any time. The 16" stroke is long enough for broaching. Single phase for plug and press.
Specifications: Capacity: 50 tons Rams travel: 16" Bore: 6" Ram: 4" Operating PSI: 3,537 @ 50 tons Horse Power: 2 HP 120/220 volt - 1PH Controls: Joystick operation Pressing speed: 11" IPM Return speed: 20" IPM Max. Ram to table: 41-3/4" Min. Ram to table: 0" Width between uprights: 44" Width between table channels: 8-1/4" Floor space: 55"x 36" Height: 94" Weight: 1,550 lbs.
