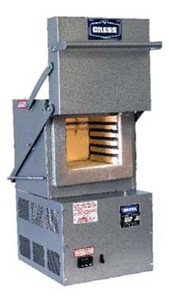

CRESS Industrial Furnaces Model C601 & C401H
Uses: These models are designed for those users who require automatic temperature controlled furnaces from 250° F to 2000° F (Model C-601) or up to 2250° F (Model C401H)
At A Low Cost: An ideal unit for many of the small jobs found in Tool rooms, Production Shops or Laboratory.
Temperature Control: Auto tuning microprocessor-based controller.
Elements: C-601 chrome nickel wire. C401H-high temperature iron-aluminum wire.
Wiring: furnace is completely wired and equipped with cord ready to plug into a 115 volt outlet. control, relay and wiring connections are enclosed on the base.
General construction: Furnace case of sheet steel is assembled by use of electrical welding and sheet metal screws. The spring counter-balance door rises vertically on lever arrangement keeping the hot face away from operator. The C401H walls and door are constructed of high quality insulating brick backed by 1800° F block insulation. Furnace is finished in heat resistant hammer tone gray.
Safety switch: These models come equipped with a door safety switch. when door is opened, power is disconnected from the heating element
Specifications:
| Model | C-401H | C-601 |
| Chamber Size | 6.5" x 9" x 2.5" | 8.5" x 10" x 6.5" |
| Overall Size | 15.5" x 17.5" x 22" | 15.5" x 17" x 22" |
| Max. Intermittent Temperature | 2250 F | 2000 F |
| Max. Continuous Temperature | 2000 F | 1800 F |
| KW Input | 1.6 | 1.4 |
| Weight | 100 lbs. | 100 lbs. |
For more info, visit www.p65warnings.ca.gov.
| Item Number | Description | Price | Quantity |
|---|---|---|---|
| C401H-F4 | Industrial Furnace w/ High Temp. Iron-AL Wire, Equipped w/ F4 | $ 5,195.00 | |
| C401H-PM3T | Industrial Furnace w/ High Temp. Iron-AL Wire, Equipped w/ PM3T | $ 3,395.00 | |
| C401H-PM4 | Industrial Furnace w/ High Temp. Iron-AL Wire, Equipped w/ PM4 | $ 3,995.00 | |
| C601-F4 | Industrial Furnace w/ Chrome Nickel Wire, Equipped w/ F4 | $ 5,195.00 | |
| C601-PM4 | Industrial Furnace w/ Chrome Nickel Wire, Equipped w/ PM4 | $ 3,995.00 | |
| C601-PM3T | Industrial Furnace w/ Chrome Nickel Wire, Equipped w/ PM3T | $ 3,295.00 |
