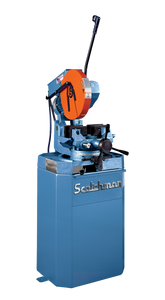

Scotchman Manual Saw CPO350, Low Turn - CPO350LT
Brand: Scotchman- SKU:
- CPO350LT
- ID:
- 107954
$9,295.00
Scotchman Manual Saw CPO350, Low Turn - CPO350LT
Standard Features:
- Manual Double Self-Centering Vise Assures Burr-Free Cuts
- Operator Controlled Trigger Switch
- Miter Capabilities 45 degrees Left and 45 degrees Right
- Miter Locking Device: Quick, Accurate Setting-Stops at 45 Degrees Left, Straight 90 Degrees, and 45 Degrees Right
- Capable of Slotting
- Two Cutting Speeds (LT 22/44 rpm Or HT 44/88 rpm)
- Double Reduction, Hardened and Ground Worm and Wheel Gear Box
- Worm Wheel of Top Quality Bronze
- Chip Drawer
- 7 Gallon Coolant Tank with Pump
- One 12-1/2" Diameter (315 mm) HSS Blade
- One Blade Wrench
- One Gallon Concentrated Coolant
- 230 or 460 Volt/3 Phase Electrics (must specify voltage)
- Warranty: Three Years on Parts
- Made in USA
Capacities & Specifications:
| Cutting Speeds | Must Specify when Ordering | |
| LT (Low Turn) designed for solid mild steel, solid stainless steel & thick wall pipe | LT (Low Turn) 22 rpm / 44 rpm | Motor rate: 3 hp |
| HT (High Turn) designed for thin wall tube .060 wall thickness or thinner and non-ferrous material | HT (High Turn) 44 rpm / 88 rpm | Motor rate: 2.5 hp |
| VS (Variable Speed) ~ wired 230/460, 3-ph | VS (Variable Speed) 11 / 177 rpm | Motor Rate: 5 hp |
| VS (Variable Speed) ~ wired 220, 1-ph | VS (Variable Speed) ~ 11 / 177 rpm | Motor Rate: 5 hp |
| SS (Single Speed) designed for 220v 1 ph applications | SS (Single Speed) 44 rpm | Motor Rate: 3 hp |
| TUBING Round Square Rectangle SOLID Round Square | 90 Degree 4-1/2" (114 mm) 4-1/4" x 4-1/4" (108 x 108 mm) 5-1/2" x 4" (140 x 102 mm) 90 Degree 2" (51 mm) 2" x 2" (51 x 51 mm) | 45 Degree 4" (102 mm) 3-3/4" x 3-3/4" (96 x 96 mm) 3-3/4" x 3-3/4" (96 x 96 mm) 45 Degree 1-3/4" (44 mm) 1-3/4" x 1-3/4" (44 x 44 mm) |
| Factory Wired | Specify 208 3 ph 230 3 ph 460 3 ph 575 volt, 3 ph 60 hz 220 1-ph 60 Hz (SS Model only) | |
| Maximum Diameter Blade | 14" | 350 mm |
| Arbor Bore | 1-9/16" | 40 mm |
| Pin Spacing | 4/12/64 | |
| Width | 21-7/8" | |
| Depth | 43-1/2" | |
| Height not including handle | 56-1/4" | |
| Height from floor to vise | 37-7/16" | |
| Shipping Weight | 660 lbs. | (299 kg) |
