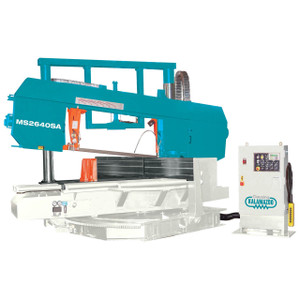

Clausing Kalamazoo Semi-Automatic Horizontal Swivel Head Miter Bandsaw, 20.5" x 40" Max Rectangular Capacity - MS2640SA
Brand: Clausing- SKU:
- MS2640SA
- ID:
- 113259
Clausing Kalamazoo Semi-Automatic Horizontal Swivel Head Miter Bandsaw, 20.5" x 40" Max Rectangular Capacity - MS2640SA
26" (660mm) Semi-Automatic Hydraulic Swivel Head Miter Horizontal Bandsaw, Twin Column Head Support
Semi-Automatic Inverter controlled infinitely variable blade speed Miter Bandsaw can allow for power vise clamping, head rise and lower. Precision pivot system facilitates easy and accurate adjustment for angle cuts. Heavy duty, rigid saw frame supported by two large bore hydraulic cylinders.
Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Features:
- Swivel sawhead mitering from 90° to 60°
- Precision ground, oversized round column design
- 7.5 degree blade cant for longer blade life
- Heavy duty, rigid saw frame supported by two large bore hydraulic cylinders
- Cross link connecting the two columns for enhanced structural strength
- 45 degree forward & backward swivel with automatic angle lock-in smooth and powerful cutting
- Heavy-duty inverter blade drive system
- Easy-to-read LED speed indicator
- Hydraulically operated carbide blade guides
- Two additional guide bearings for extra support of the blade
- Automatic hydraulic blade tensioning device
- Hydraulically actuated guide arm
- Integral coolant system
- Synchronized power driven blade brush
- Independent control station
- Precision feed pressure & feed rate dual valve system
- "Shut off" or “keep on” selector switch
- Vise pressure detector
- Hydraulically powered material infeed lift roller
- Idle roller work table for material feeding
- Light projection for precise length measurement
- Two full stroke cylinder vises
- Proximity switch for sensing blade slippage or breakage
- Electrical and hydraulic safety interlock
- Conduits protection
- Bi-metal saw blade
- Tool box, leveling pads, and an additional wire brush
- Operation & parts manual
- Two (2) year limited warranty
Accessories:
- CM2601M Chip Conveyor
- VP1201 Variable Vise Pressure System
- P10 Stock Stand Assembly 21" - 30"
- CSR1 SAWZIT 1 Gallon
- CSR5 SAWZIT 5 Gallon
Specifications:
| Model | MS2640SA |
| Motor | 10 HP (7.5 kw), 230/460v 3ph* |
| Hydraulic Pump Motor | 3 HP (2.25 kw) |
| Hydraulic Oil Capacity | 15.6 gallons (60 liters) |
| Blade Speeds (Variable Speed) | 49 - 295 fpm (15 - 90 m/min) |
| Blade Size | 2" x .063" x 326.8" (54 x 1.6 x 8300 mm) |
| Blade Tension | Hydraulic |
| Coolant | Recirculating |
| Coolant Capacity | 26 gallons (100 liters) |
| 90° Cutting Capacity | |
| Round | 26" (660 mm) |
| Rectangular (H x W) | 20.5" x 40" (520 x 1020 mm) |
| 45° Cutting Capacity | |
| Round | 23" (620 mm) |
| Rectangular (H x W) | 20.5" x 24.4" (520 x 620 mm) |
| 60° Cutting Capacity | |
| Round | 15.7" (400 mm) |
| Rectangular (H x W) | 21.3" x 15.7" (540 x 400 mm) |
| Length | 148" (3750 mm) |
| Width | 154" (3900 mm) |
| Height | 109" (2765 mm) |
| Bed Height | 31.9" (810 mm) |
| Net Weight | 9460 lbs. (4300 kg) |
| Shipping Weight | 12,254 lbs. (5570 kg) |
* Other voltages optional. All specifications subject to change without notice or obligation.
