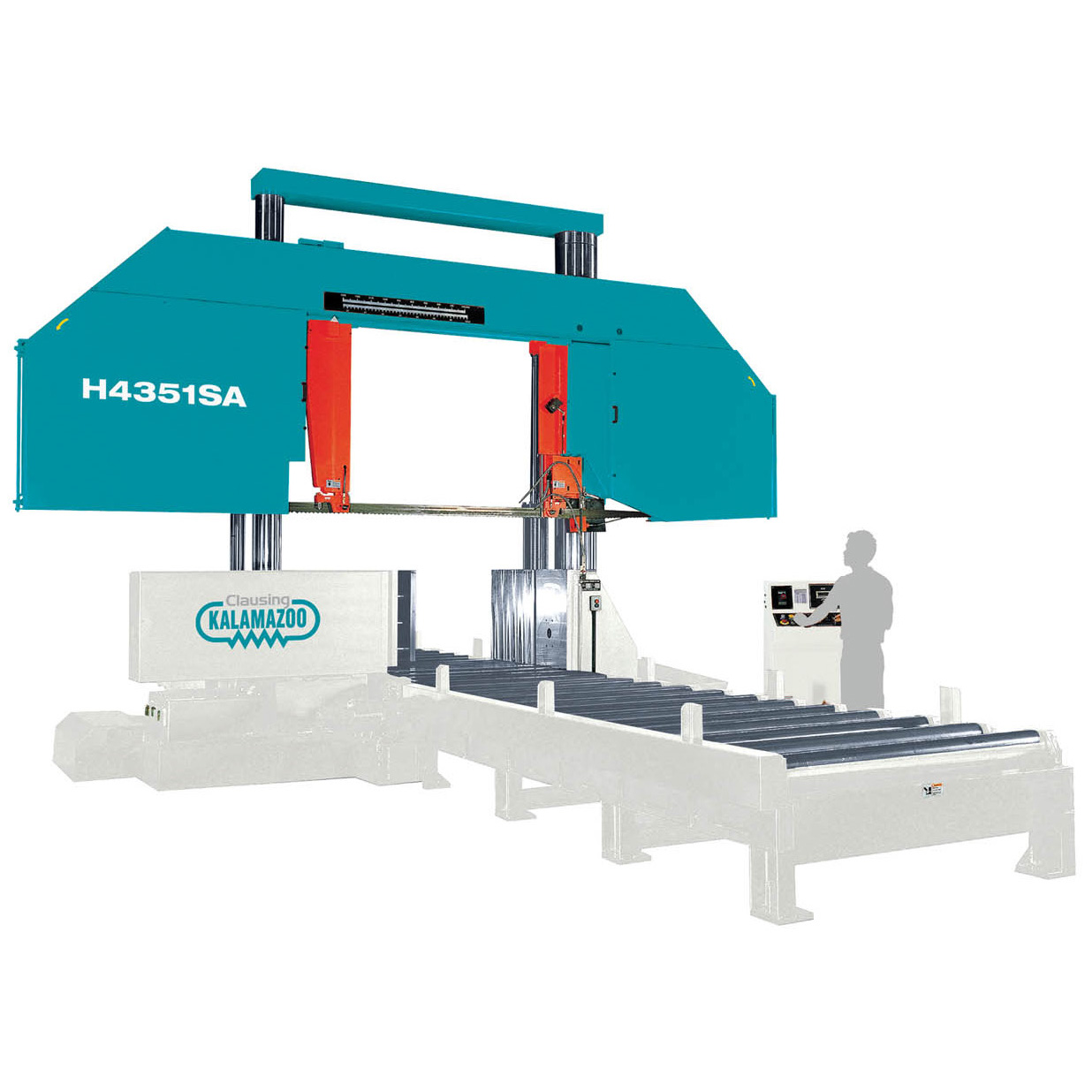

Clausing Kalamazoo Double Column Semi-Automatic Horizontal Bandsaw, 43.3" x 51.2" Max Rectangular Capacity - H4351SA
Brand: Clausing- SKU:
- H4351SA
- ID:
- 113267
Clausing Kalamazoo Double Column Semi-Automatic Horizontal Bandsaw, 43.3" x 51.2" Max Rectangular Capacity - H4351SA
43.3" (1100mm) Semi-Automatic Horizontal Bandsaw
This model is designed for rugged production use, and it offers high production output and heavy-duty performance in Semi-automatic operation. Voltage specific model, at 230 volts, other voltages may require a transformer or special order.
Dual Column design with precision ground columns ensures smooth saw frame movement and consistent cutting force throughout the cutting cycle.
Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Features:
- The extra heavy-duty saw frame is supported by two large bore hydraulic cylinders, providing unsurpassed rigidity, and the smoothest cutting possible
- Dual Column design with precision ground columns ensures smooth saw frame movement and consistent cutting force throughout the cutting cycle
- Specially designed planetary gear reducer for optimum mechanical efficiency
- Inverter controlled infinitely variable blade speed with blade speed indicator
- Independent wire brush system
- Hydraulically powered guide arm is positioned from the control panel
- Hydraulic Blade Tension System, with easy to read pressure gauge
- Carbide blade guides are activated hydraulically
- Additional blade guiding bearings for extra support
- Heavy cast iron moveable Guide Arm is hydraulically powered from the control panel
- Auto shut off function
- User-friendly control panel
- Precision Feed Pressure control valve with micro-precision adjustment
- Saw Blade Height Selector
- Hydraulic driven work bed with rollers for moving large material safely
- Three sets of vises design. The front and middle vises hold the stock during cutting while the guide vise can be separately controlled to guide the material during feeding cycle
- Stock position cylinder pushes stock away from fixed vise for easy material handling
- Shadow light for material measurement
- Blade breakage and/or slippage detector
- Bi-metal saw blade
- Tool box, leveling pads, and an additional wire brush
- Vibration damper
- Operation & parts manual
- Two (2) year limited warranty
Accessories:
- CM4301H Chip Conveyor
- VP1201 Variable Vise Pressure System
- P10 Stock Stand Assembly 21" - 30"
- CSR1 SAWZIT 1 Gallon
- CSR5 SAWZIT 5 Gallon
Specifications:
| Model | H4351SA |
| Motor | 15 HP (11.2 kw), 230/460v 3ph* |
| Hydraulic Pump Motor | 3 HP (2.2 kw) |
| Hydraulic Oil Capacity | 35 gallons (160 liters) |
| Blade Speeds (Variable Speed) | 49 - 264 fpm (15 - 80 m/min) |
| Blade Size | 3" x .063" x 433" (80 x 1.6 x 11000 mm) |
| Blade Tension | Hydraulic |
| Coolant | Recirculating |
| Coolant Capacity | 44 gallons (200 liters) |
| 90° Cutting Capacity - Round | 43.3" (1100 mm) |
| 90° Cutting Capacity - Square | 43.3" (1100 mm) |
| 90° Cutting Capacity - Rectangular (H x W) | 43.3" x 51.2" (1100 x 1300 mm) |
| Length | 86.6" (2200 mm) |
| Width | 193" (4900 mm) |
| Height | 137.8" (3500 mm) |
| Bed Height | 24.4" (620 mm) |
| Net Weight | 30,140 lbs. (13700 kg) |
| Shipping Weight | 33,455 lbs. (15175 kg) |
* Other voltages optional. All specifications subject to change without notice or obligation.
