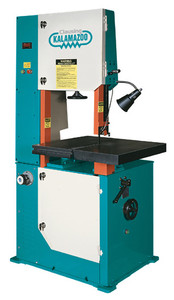

Clausing Kalamazoo 12" x 20" Vertical Bandsaw, Hydraulic Table Model - V2012H
Brand: Clausing- SKU:
- V2012H
- ID:
- 111375
$16,195.00
Clausing Kalamazoo 12" x 20" Vertical Bandsaw
Hydraulic Table Model - V2012H
V2012H - Hydraulic Table Model: 26-3/4" (680mm) x 29" (736mm) Heavy-duty Cast Iron Table with two-way tilt (15°L & 45°R) Four (4) T-Slots on Top Table Travel 13"
Standard Features:
- 230v/460v/60/3 Electricals
- Magnetic Starter with 110v Control Circuit and Overload Protection
- 3 Hp (2.2Kw) TEFC Motor
- Dual Range Transmission
- Sets of (4) Blade Guide Sizes w/ Back-up Roller (1/16", 1/8", 3/16", 1/4", 3/8", 1/2", 5/8", 3/4", 1")
- Bonded Rubber Band Wheels
- 110v Work Light
- Built-in Air Chip Blower
- Blade Tension Indicator
- Blade Speed Indicator
- Rip Fence
- 3/4" (19mm) Carbon Hardback Blade
- Locking Band Wheel Doors
- Operation and Parts Manual
- Two (2) year limited warranty
Optional Equipment:
- 1" Capacity Blade Welder, Shear and Flash Grinder
- Circle Cutting Attachment
- Miter Gauge
- Workholding Jaws
Specifications:
| Model | V2012H |
| Type | Hydraulic Table |
| Throat | 20" (508mm) |
| Work Height | 12" (305mm) |
| Drive Motor | 3 Hp (2.2Kw) |
| Blade Length | 160.5" - 161.2" (4070-4100mm) |
| Blade Width | 1/8"-1" (3-25mm) |
| Blade Speed (fpm) | 50-5200 |
| Dimensions | |
| Length | 51" (1295mm) |
| Width | 44" (1117mm) |
| Height | 81" (2057mm) |
| Net Weight | 1,500 lbs. (680 kg) |
| Shipping Weight | 1,650 lbs. (748 kg) |
