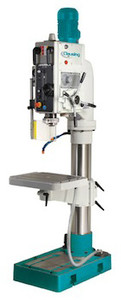

Clausing/Ibarmia Series B Geared-Drive Round-Column Drill, 60mm Drilling Capacity in Steel - B60
Brand: Clausing- SKU:
- B60
- ID:
- 111525
| Steel Drilling Capacity | 2.36" (60mm) |
| Cast Iron Drilling Capacity | 2.75" (70mm) |
| Call For Price Enable | yes |
Clausing/Ibarmia Series B Geared-Drive Round-Column Drill, 60mm Drilling Capacity in Steel - B60
Series B Geared Drive with Push-Button Electromagnetic Clutch Automatic Feed Control
The B series is a rugged built Industrial Drilling Machine designed to handle large workpieces and offers the widest range of large capacity drilling and tapping. The B series is equipped with an electromagnetic clutch for precise automatic feed control that can be activated from any of the 4 white push-buttons built into the end of the feed crank handles.
Standard Features:
- Automatic feed reversing system for tapping on "RS" models
- Automatic feed and cut-off by electromagnetic clutch
- Hardened and ground high quality steel gears
- Speed plate and selecting levers on front of head
- Gear box lubrication by automatic pump
- Machine base with 2 T-slots, coolant tank and pump
- Large rotating table with 3 T-slots
- Feed crank wheel for manual feed
- Front hand wheel for fine feed work
- Depth scale and adjustable depth stop
- Automatic tool ejector
- Work Light
- Built-in low voltage electrical equipment in machine head
- Emergency STOP
- Drill guard with microswitch
Specifications:
| Standard Models | B60 |
| Auto feed reversing "RS" Models | B60RS |
| Capacities | |
| Maximum drilling capacity in steel | 2.36" (60mm) |
| Maximum drilling capacity in cast iron | 2.75" (70mm) |
| Maximum tapping capacity in steel | 1.65" (42mm) |
| Maximum tapping capacity in cast iron | 2" (50mm) |
| Specifications | |
| Spindle taper | 5MT |
| Quill diameter | 3.54" (90mm) |
| Spindle travel (drilling depth) | 10.24" (260mm) |
| Main motor power | 5.5 Hp (4Kw) |
| Coolant pump motor power | .12 Hp (.08Kw) |
| Number of speeds (see speed charts) | 12 |
| Number of automatic feeds | 6 |
| Auto feed range: in./rev. (mm/rev) | .0039/.0079/ .0118/.0157/ .0197/.0236 (0.1-0.2-0.3- 0.4-0.5-0.6) |
| Dimensions and Weights | |
| Height (A) | 103.9" (2640mm) |
| Base: Length x Width (B) | 35.8" x 23.2" (910x590mm) |
| Base to spindle (C) | 49.21" (1250mm) |
| Spindle center to column (D) | 15.75" (400mm) |
| Spindle to Table (E) | Minimum: 3.15" (80mm) Maximum: 25.98" (660mm) |
| Worktable: Length x Width (F) | 23.6" x 27.6" (600x700mm) |
| Base height (G) | 6.3" (160mm) |
| Column diameter (H) | 8.66" (220mm) |
| Net weight | 1,808 lbs. (820Kg) |
| Shipping weight | 2,025 lbs. (920Kg) |
| Shipping dimension (Length x Width x Height) | 32" x 52" x 111" (.8 x.1.3 x 2.8m) |
