CDI Mechanical Indicators, AGD Group 2
DIAL SIZE 2-1/4" Diameter
These dial indicators are built to American Gage Design Group 2 specifications. This group is CDI's most requested style, and the industries most common. They are furnished with a lug back (with 90 degree mounting holes to be used vertically or horizontally), a regular contact point 1/4" long, and a dust cap.
For help choosing an indicator see "Features and Tips" under MECHANICAL INDICATORS heading.
All gages are supplied with jeweled bearings and a lug back for mounting.
The following charts below contain all standard group 2 dial indicators arranged by travel.
Dial Faces:
- W = White English dial
- Y = Yellow Metric dial
- B = High contrast dial black with white numbers
Click to view the Tracing Template
Click to view the Tracing Template - Long Range
Specifications:

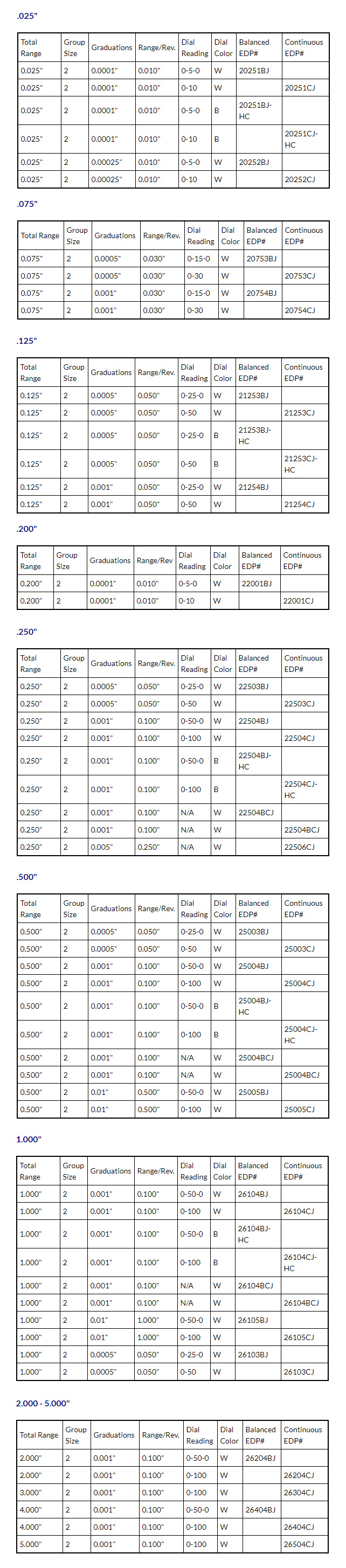

Click to view the Specifications Table
Or enter any Item Number below into the search box to see additional specifications.
For more info, visit www.p65warnings.ca.gov.
| Item Number | Description | Price | Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|
| 20251BJ | Indicator, AGD Group 2 | 0.025" | 0.0001" | 0.010" | 0-5-0 | W | Balanced | $ 199.95 | |
| 20251BJ-HC | Indicator, AGD Group 2 | 0.025" | 0.0001" | 0.010" | 0-5-0 | B | Balanced | $ 199.95 | |
| 20251CJ | Indicator, AGD Group 2 | 0.025" | 0.0001" | 0.010" | 0-10 | W | Continuous | $ 199.95 | |
| 20251CJ-HC | Indicator, AGD Group 2 | 0.025" | 0.0001" | 0.010" | 0-10 | B | Continuous | $ 199.95 | |
| 20252BJ | Indicator, AGD Group 2 | 0.025" | 0.00025" | 0.010" | 0-5-0 | W | Balanced | $ 199.95 | |
| 20252CJ | Indicator, AGD Group 2 | 0.025" | 0.00025" | 0.010" | 0-10 | W | Continuous | $ 199.95 | |
| 21253BJ | Indicator, AGD Group 2 | 0.125" | 0.0005" | 0.050" | 0-25-0 | W | Balanced | $ 169.95 | |
| 21253BJ-HC | Indicator, AGD Group 2 | 0.125" | 0.0005" | 0.050" | 0-25-0 | B | Balanced | $ 179.95 | |
| 21253CJ | Indicator, AGD Group 2 | 0.125" | 0.0005" | 0.050" | 0-50 | W | Continuous | $ 179.95 | |
| 21253CJ-HC | Indicator, AGD Group 2 | 0.125" | 0.0005" | 0.050" | 0-50 | B | Continuous | $ 169.95 | |
| 21254BJ | Indicator, AGD Group 2 | 0.125" | 0.001" | 0.050" | 0-25-0 | W | Balanced | $ 179.95 | |
| 21254CJ | Indicator, AGD Group 2 | 0.125" | 0.001" | 0.050" | 0-50 | W | Continuous | $ 179.95 | |
| 22001BJ | Indicator, AGD Group 2 | 0.200" | 0.0001" | 0.010" | 0-5-0 | W | Balanced | $ 239.95 | |
| 22001CJ | Indicator, AGD Group 2 | 0.200" | 0.0001" | 0.010" | 0-10 | W | Continuous | $ 209.95 | |
| 22503BJ | Indicator, AGD Group 2 | 0.250" | 0.0005" | 0.050" | 0-25-0 | W | Balanced | $ 179.95 | |
| 22503CJ | Indicator, AGD Group 2 | 0.250" | 0.0005" | 0.050" | 0-50 | W | Continuous | $ 179.95 | |
| 22504BCJ | Indicator, AGD Group 2 | 0.250" | 0.001" | 0.100" | - | W | Bal./Cont. | $ 179.95 | |
| 22504BJ | Indicator, AGD Group 2 | 0.250" | 0.001" | 0.100" | 0-50-0 | W | Balanced | $ 179.95 | |
| 22504BJ-HC | Indicator, AGD Group 2 | 0.250" | 0.001" | 0.100" | 0-50-0 | B | Balanced | $ 179.95 | |
| 22504CJ | Indicator, AGD Group 2 | 0.250" | 0.001" | 0.100" | 0-100 | W | Continuous | $ 179.95 | |
| 22504CJ-HC | Indicator, AGD Group 2 | 0.250" | 0.001" | 0.100" | 0-100 | B | Continuous | $ 179.95 | |
| 22506CJ | Indicator, AGD Group 2 | 0.250" | 0.005" | 0.250" | - | W | Continuous | $ 179.95 | |
| 25003BJ | Indicator, AGD Group 2 | 0.500" | 0.0005" | 0.050" | 0-25-0 | W | Balanced | $ 179.95 | |
| 25003CJ | Indicator, AGD Group 2 | 0.500" | 0.0005" | 0.050" | 0-50 | W | Continuous | $ 179.95 | |
| 25004BCJ | Indicator, AGD Group 2 | 0.500" | 0.001" | 0.100" | - | W | Bal./Cont. | $ 179.95 | |
| 25004BJ | Indicator, AGD Group 2 | 0.500" | 0.001" | 0.100" | 0-50-0 | W | Balanced | $ 179.95 | |
| 25004BJ-HC | Indicator, AGD Group 2 | 0.500" | 0.001" | 0.100" | 0-50-0 | B | Balanced | $ 179.95 | |
| 25004CJ | Indicator, AGD Group 2 | 0.500" | 0.001" | 0.100" | 0-100 | W | Continuous | $ 179.95 | |
| 25004CJ-HC | Indicator, AGD Group 2 | 0.500" | 0.001" | 0.100" | 0-100 | B | Continuous | $ 179.95 | |
| 25005BJ | Indicator, AGD Group 2 | 0.500" | 0.01" | 0.500" | 0-50-0 | W | Balanced | $ 179.95 | |
| 25005CJ | Indicator, AGD Group 2 | 0.500" | 0.01" | 0.500" | 0-100 | W | Continuous | $ 179.95 | |
| 26103BJ | Indicator, AGD Group 2 | 1.000" | 0.0005" | 0.050" | 0-25-0 | W | Balanced | $ 179.95 | |
| 26103CJ | Indicator, AGD Group 2 | 1.000" | 0.0005" | 0.050" | 0-50 | W | Continuous | $ 179.95 | |
| 26104BCJ | Indicator, AGD Group 2 | 1.000" | 0.001" | 0.100" | - | W | Bal./Cont. | $ 169.95 | |
| 26104BJ | Indicator, AGD Group 2 | 1.000" | 0.001" | 0.100" | 0-50-0 | W | Balanced | $ 179.95 | |
| 26104BJ-HC | Indicator, AGD Group 2 | 1.000" | 0.001" | 0.100" | 0-50-0 | B | Balanced | $ 169.95 | |
| 26104CJ | Indicator, AGD Group 2 | 1.000" | 0.001" | 0.100" | 0-100 | W | Continuous | $ 179.95 | |
| 26104CJ-HC | Indicator, AGD Group 2 | 1.000" | 0.001" | 0.100" | 0-100 | B | Continuous | $ 179.95 | |
| 26105BJ | Indicator, AGD Group 2 | 1.000" | 0.01" | 1.000" | 0-50-0 | W | Balanced | $ 179.95 | |
| 26105CJ | Indicator, AGD Group 2 | 1.000" | 0.01" | 1.000" | 0-100 | W | Continuous | $ 179.95 | |
| 26204BJ | Indicator, AGD Group 2 | 2.000" | 0.001" | 0.100" | 0-50-0 | W | Balanced | $ 249.95 | |
| 26204CJ | Indicator, AGD Group 2 | 2.000" | 0.001" | 0.100" | 0-100 | W | Continuous | $ 219.98 | |
| 26304CJ | Indicator, AGD Group 2 | 3.000" | 0.001" | 0.100" | 0-100 | W | Continuous | $ 249.95 | |
| 26404CJ | Indicator, AGD Group 2 | 4.000" | 0.001" | 0.100" | 0-100 | W | Continuous | $ 349.95 | |
| 26504CJ | Indicator, AGD Group 2 | 5.000" | 0.001" | 0.100" | 0-100 | W | Continuous | $ 349.95 |
