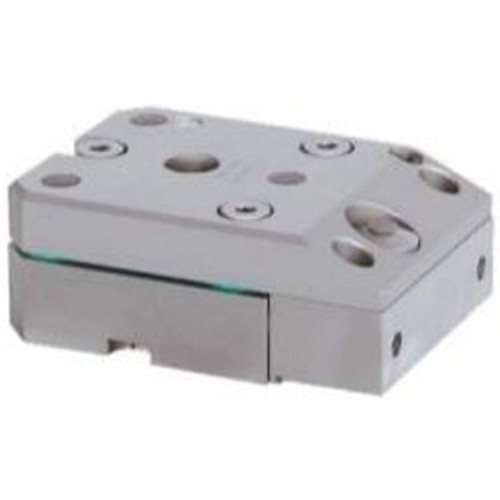

H4110M 3D-Pallet (for M-Clamper)

For manual and automatic changing of workpieces. Fits to P-Clamper and also to "B"-Beam and M-Clamper. Three axis levelling is standard, quick and easy workpiece alignment in X, Y and Z direction.

H4110M for manual clampers (H4000, H4300)

Max. workpiece weight (workpiece holder included): 30 kg (66.15 lbs)
Pallet weight: 2.2 kg (4.8 lbs)

3-D Pallet Characteristics:

• For holder and workpiece weights up to 30 kg (66.15 lbs)
• Wide range of adjustment (0.5 mm/0.0197" on a length of 80 mm/3.152")
• Quick and secure adjustment in X, Y and Z direction
• Vibration free even under high flushing pressure
• Z-surfaces for Z = zero position are insulated against dust
• Quick and easy zero positioning
• Low profile construction allows optimal clearance with upper wire guide
• Cross-hair prism centering not effected by heat
• Rear surface ground parallel to prism for adjusting 3rd axis

For use with the Carl Hirschmann H4000 Manual Clamper
