Bison Drilling Machine Vises
- Original Shaft Vise Made in Europe
- The adjustable sliding rods enable the workpieces to remain set in the same position
- Able to be set up in both horizontal and vertical positions
- Hardened and ground jaw inserts and V-block
- Sturdy, cast iron design
- Ideal for most drilling and light milling operations
Standard accessories:
- Handcrank
- Slot nuts
For more info, visit www.p65warnings.ca.gov.

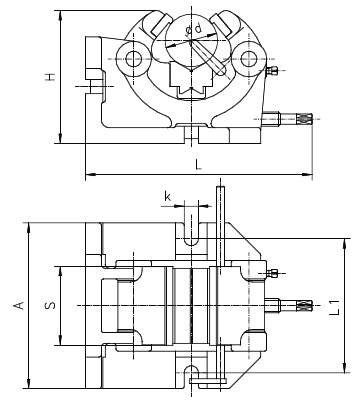

| Item Number | Description | S | A | H | L | L1 | d | k | Max. Clamping Force (daN) | Weight | Price | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6546-100 | Bison Drilling Machine Vise | 100 | 210 | 170 | 305 | 170 | 10-83 | 18 | 1.000 | 47 lbs. | $ 895.00 | |
| 6546-125 | Bison Drilling Machine Vise | 125 | 200 | 235 | 405 | 160 | 15-100 | 18 | 1.500 | 84 lbs. | $ 1,195.00 | |
| 6546-160 | Bison Drilling Machine Vise | 160 | 300 | 295 | 460 | 256 | 50-160 | 18 | 2.000 | 165 lbs. | $ 1,895.00 |
