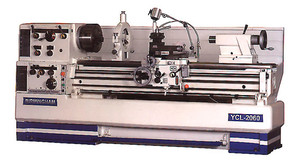

Birmingham High Speed Precision Gap Bed Lathes 3-1/8" Spindle Bore
Brand: Birmingham Machinery- ID:
- 101257
Birmingham High Speed Precision Gap Bed Lathes
Features:
- 10 HP Main motor
- One-Piece Cast iron base
- D1-8 spindle with 3-1/8" Bore
- No Change gears required
- 12 Speeds from 45-1, 600 rpm
- 60 Kinds of inch threads from 112-2 TPI
- 47 Kinds of Metric threads from 0.2 - 14mm
- Main Spindle Hardened & Precision ground
- Bed made on fine grain high tensile cast iron
- Bedways induction hardened & precision ground
- All gears & shafts hardened & precision ground
- Main spindle supported at 3-point by precision bearings
Standard Equipment
- Follow rest
- 18 inch face plate
- 6 1/2 inch steady rest w/rollers
- 12 inch 3-jaw chuck
- 16 inch 4-jaw chuck
- 10 inch drive plate
- Operation and parts manuals
- Coolant system
- Halogen work light
- Removable gap
- 4-way tool post
- Thread chasing dial
- Hand oil pump for ways
- (2) dead centers
- Reducing sleeve M.T. 7/M.T.5
- Tool kit with tools
- 4-position automatic kick-out longitudinal carriage stop
- Full length foot brake
- Full length splash guard
Optional Equipment: Call for Pricing
- Taper attachment
- Quick tool changer
- 5-C Lever Type Collet Closer
- Digital readout
- 12" steady rest w/rollers
| Specifications | |||||||
|---|---|---|---|---|---|---|---|
| ITEM / MODEL | YCL-2060 | YCL-2080 | YCL-20120 | YCL-2260 | YCL-2280 | YCL-22120 | |
| CAPACITIES | Max. swing over bed | 20 inch | 22 inch | ||||
| Distance between centers | 60 inch | 80 inch | 120 inch | 60 inch | 80 inch | 120 inch | |
| Max. effective cutting length | 56 inch | 75 1/2 inch | 116 inch | 56 inch | 75 1/2 inch | 116 inch | |
| Max. swing over cross slide | 11 7/8 inch | 13 3/4 inch | |||||
| Max. swing in gap | 29 inch | 31 inch | |||||
| Effective length in gap | 6 inch | ||||||
| Width of bed | 13 3/4 inch | ||||||
| HEADSTOCK | Spindle Nose | D1-8 | |||||
| Diameter of spindle thru bore | 3 1/8 inch | ||||||
| Taper of spindle center | M.T. #7 / M.T. #5 | ||||||
| Spindle speeds, 12 steps | 25, 35, 55, 80, 120, 170, 235, 350, 525, 700, 1100, 1600 rpm | ||||||
| FEEDS & THREADS | Longitudinal feeds | 35 Kinds, 0.0022 - 0.0612 inch / rev. | |||||
| Cross feeds | 35 Kinds, 0.00048 - 0.01354 inch/rev. | ||||||
| Metric threads | 47 Kinds, 0.2 - 14mm | ||||||
| Inch threads | 60 Kinds, 112 - 2 TPI | ||||||
| Module threads | 39 Kinds, 0.1 - 7mm | ||||||
| Diametral pitch threads | 50 Kinds, 4 -112 DP | ||||||
| CARRIAGE | Max. travel of cross slide | 12 15/16 inch | |||||
| Max. travel of top slide | 5 1/8 inch | ||||||
| 4-way tool post size | 1 x 1 inch | ||||||
| Longitudinal leadscrew dia./pitch | Dia. 1 5/8 inch / 4 TPI | ||||||
| TAILSTOCK | Diameter of tailstock quill | 3 inch | |||||
| Taper of tailstock quill center | M.T. #5 | ||||||
| Max. travel of tailstock quill | 7 inch | ||||||
| MOTORS | Power of main motor | 10HP, 230/460V/60HZ, 3 Phased Prewired 230V | |||||
| Power of coolant pump | 1/8HP, 230/460V/60HZ, 3 Phase Prewired 230V | ||||||
| DIMENSIONS | Overall dimensions (L x W x H) (in) approx. | 114x46x57 | 134x46x57 | 154x46x57 | 114x46x58 | 134x46x58 | 154x46x58 |
| Net weight, LBS, approx. | 5,200 | 5,900 | 7,500 | 5,200 | 6,000 | 7,600 | |
| Gross weight, LBS, approx. | 5,900 | 6,500 | 8,500 | 6,000 | 6,600 | 8,600 | |
lowest cost lathe best price lathe lathe cheap engine lathe lowest cost economical lathe
Best prices lathe lowest priced lathe cheapest lathe low cost lathe lowest cost engine lathe precision lathe cheap
For more info, visit www.p65warnings.ca.gov.
| Item Number | Description | Price | Quantity |
|---|---|---|---|
| YCL-SR | Birmingham 10" Steady Rest for Model YCL-22120 | $ 1,695.00 | |
| UNI-14120 | UNIQ Digital Readout 14" x 120" Installed for Model YCL-22120 | $ 2,995.00 | |
| YCL-2080 | Birmingham High Speed Precision Gap Bed Lathes, 20" x 80" | $ 24,995.00 | |
| YCL-20120 | Birmingham High Speed Precision Gap Bed Lathes, 20" x 120" | $ 28,995.00 | |
| YCL-2060 | Birmingham High Speed Precision Gap Bed Lathes, 20" x 60" | $ 21,495.00 | |
| YCL-22120 | Birmingham High Speed Precision Gap Bed Lathes, 22" x 120" | $ 28,995.00 | |
| YCL-2260 | Birmingham High Speed Precision Gap Bed Lathes, 22" x 60" | $ 23,995.00 | |
| YCL-2280 | Birmingham High Speed Precision Gap Bed Lathes, 22" x 80" | $ 26,995.00 |
