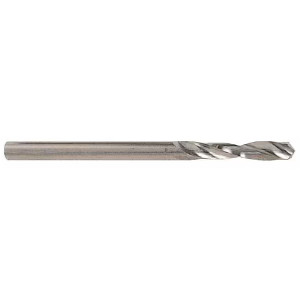

Big Kaiser SPHINX® Drill, SPIREC Micro Drill, 118° Angle, Cobalt, 0.0591" Size - 81-550-6
Brand: Big Kaiser- SKU:
- 81-550-6
- ID:
- 94836
| Drill Size (D): Fractions | 1/16" |
| Drill Size (d): Inches | 0.0591" |
| Drill Size (d): mm | 1.50 mm |
| Overall Length (L) | 1.496" |
| Shank Dia. (D): Inches | 0.079" |
| Shank Dia. (D): mm | 2.0 mm |
$11.47
Big Kaiser SPHINX® Drill, SPIREC Micro Drill, 118° Angle, Cobalt, 0.0591" Size
Micro Drill Bit: 0.0591" Dia, 118 deg, Cobalt
Bright/Uncoated, 1.4960" OAL, Right Hand, Series 12 604
Manufacturer Part #: 40.12604.0150
Features:
- Precision made in Switzerland
- Tool Material: Cobalt
- 2 spiral flutes, right hand cut
- Accuracy: ±.0002"
** Minimum Order Quantity = 10
** Please order in multiples of 10
Specifications:
| Drill Bit Size (Decimal Inch) | 0.0591 |
| Tool Material | Cobalt |
| Flute Length (mm) | 10.90 |
| Coating/Finish | Bright/Uncoated |
| Coolant Through | No |
| Drill Point Angle | 118 |
| Cutting Direction | Right Hand |
| Series | 12 604 |
| Overall Length (Decimal Inch) | 1.4960 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | Faceted |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance | +0.000 to -0.004 mm |
| Primary Workpiece Material | Aluminum; Cast Iron; Steel; Nickel Alloy |
| Secondary Workpiece Material | Aluminum; Cast Iron; Steel; Nickel Alloy |
| Shank Diameter (mm) | 2.00 |
| Spiral Type | Regular |
| UNSPSC Code | 23241600 |
