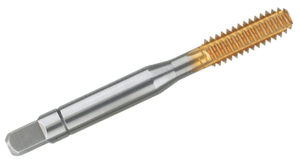

Balax Stainless Steel Bottoming Thread Forming Tap, 5/16"-18 Thread Size, H9 Thread Limit
Brand: Balax- ID:
- 229432
| Drill Size & % Of Thread | 7.20mm (75%), 7.25mm (70%), 7.30mm (65%), L (60%) |
$66.95
Balax Stainless Steel Bottoming Thread Forming Tap, 5/16"-18 Thread Size, H9 Thread Limit
- Stainless Steel: Super TiN coating supports stainless steel tapping applications.
- Chip-less Tapping: Eliminates chip removal issues in blind holes.
- Stronger Threads: Effective on materials such as steel & stainless steel.
- Better Thread Gaging: Because no metal is cut away, the possibility of producing oversized threads is greatly reduced.
- Longer Tap Life: Forming taps last 3 to 20 times longer than cutting taps.
- Efficient Production: Less tap breakage, faster tapping speeds offers to reduce cycle time and machine downtime.
- Ideal for Non-lead Screw Tappers: Thredfloer Series Taps are especially well suited for CNC machines or other machines without lead screws.
- 0-degree helix angle with bottoming chamfer style.
- Pitch angle 60-degree.
- 2-1/2 inches chamfer.
- Right-hand cutting direction.
- Square shank with a smooth surface finishing.
- Class of Fit: 2B
- No. of Grooves: 4
For More Balax Stainless Steel Bottoming Thread Forming Taps Click Here
