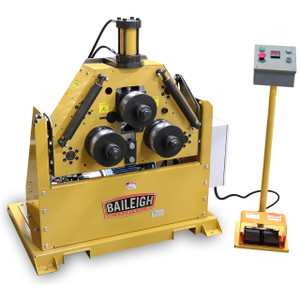

Baileigh R-H60-HD Hydraulic Roll Bender - BA9-MDL-MERH60HD
Brand: Baileigh- SKU:
- BA9-MDL-MERH60HD
- ID:
- 351544
$22,899.00
Baileigh R-H60-HD Hydraulic Roll Bender - BA9-MDL-MERH60HD
The R-H60-HD hydraulic ring roller won't flinch while bending large radii out of tough materials. This tubing roller’s programmer controls also simplify production runs.
- Runs on 220-volt single-phase power and will work at just about any fabrication shop or job site.
- Bends up to 2" square x .120" wall tubing and 2.5" schedule 40 pipe, among other materials.
- All 3 rolls turn on industrial grade hydraulic motor.
- Industrial-grade hydraulics power the top forming roll's movement for seamless adjustment.
- Digital readout with programmable stop controls upward and downward roll position for easy repeatability.
- Operator podium includes foot pedal, allowing you to stop and start the machine with ease.
- You can safely tip this pipe bender backward into a horizontal position with its unique hydraulic tipping system when rolling larger diameters.
- Steel plate frame adds strength to the machine and minimizes flex.
- This hydraulic ring roller is backed by a 1-year parts warranty and lifetime technical support by phone from Baileigh's knowledgeable team.
Why choose the Hydraulic Roll Bender R-H60 over similar machines?
- Heavy steel construction ensures that the R-H60-HD will deliver accurate bends at maximum capacity for years.
- We use only the highest-quality components that keeps machinery from wearing out, and helps this pipe bender to last longer.
- Comes equipped with segment rolls, lateral roll guides for coiling, and an operator pendant—features that some other companies might count as upgrades.
- Accepts durable tooling options, made and stocked by Baileigh, to suit a variety of applications.
- Expert assistance and advice is always a phone call away! Baileigh's experienced team of reps are on-call to troubleshoot as long as you’re using a Baileigh Roll Bender.
Specifications:
| Part Number | R-H60-HD |
| Stock Number | BA9-MDL-MERH60HD |
| Country of Manufacture | United States |
| Motor Hp | 5 |
| Driven Rolls | 3 |
| Roll Adjustment | Hydraulic |
| Pipe Capacity | Size: 2.5" (sch. 40) / Min. Dia.: 48" |
| Round Tube Capacity | Size: 2.75" (.083") / Min. Dia.: 60" |
| Square Tube Capacity | Size: 2" (.120") / Min. Dia.: 51" |
| Solid Round Capacity | Size: 1.5" / Min. Dia. 28" |
| Flat Bar Easy Way | Size: 4" (.75") / Min. Dia. 28" |
| Flat Bar Hard Way | Size: 3.25" (.375")/ Min. Dia.: 32" |
| Angle Iron Capacity | Size: 2" (.250")/ Min. Dia.: 36" |
| Shaft Diameter | 2.36" |
| Shaft Center Distance Lower Rolls | 9.562" |
| Lower Roll Dia. | 5.827" |
| Pinch | Single |
| Power | 220V Single Phase |
| Shipping Weight | 1,475 lbs. |
| Material Type | All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel. |
| *Optional Tooling | Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details. |
| Shipping Dimensions (Inches) | 60" x 44" x 68" |
