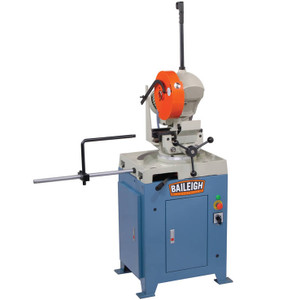

Baileigh CS-275M Manual Cold Saw, 11" Blade - BA9-1002444
Brand: Baileigh- SKU:
- BA9-1002444
- ID:
- 83520
$5,989.00
Baileigh CS-275M Manual Cold Saw, 11" Blade - BA9-1002444
Need a circular cold saw to make perfect cuts—every shift, every day? You can rely on the CS-275M. It comes with a self-centering vise, steel stand, and flood coolant system.
- Accepts an 11" blade.
- 2.75" round tube capacity at 90°.
- Miters 45° right and 90° left, perfect for slotting applications.
- 3 hp motor requires 220 volt 3-phase power.
- Choose from 2 speeds depending on your material: between 60 rpm (mild steel) and 120 rpm (aluminum).
- Direct-drive head features all-metal gears, ground and hardened to last for many years.
- Backlash adjustment ensures tight tolerances throughout the life of the saw.
- Self-centering American-style vise keeps the material correctly aligned with the blade for perfect cuts.
- Sturdy stop rod can move left or right to set up repeatable lengths for production runs.
- Heavy folded steel base—larger and wider than our CS-275EU—stabilizes the machine for accurate, wobble-free cutting.
- Flood coolant system helps the blade make burr-free cuts, takes strain off the operator, and enables the blades and saw to last longer.
- Covered by a 1-year parts warranty.
- Baileigh offers lifetime technical support by phone from a team of reps with hands-on machine experience.
Recommended for:
- Marine rails
- Playground equipment
- Hand railings
- Various chassis applications
- Other fabrication cutting jobs
Specifications:
| Part Number | CS-275M |
| Stock Number | BA9-1002444 |
| Max. Blade Diameter | 11" |
| Operation | Manual |
| Head Miter | 45° Left / 45° Right |
| Round Solid at 45° | 1.5" |
| Square Tube at 45° | 2.165" x 2.165" |
| Round Tube at 45° | 2.25" |
| Rectangle Tube at 45° | 2.165" x 2.25" |
| Round Solid at 90° | 1.5" |
| Rectangle Tube at 90° | 2.75" x 2.9" |
| Square Tube at 90° | 2.75" x 2.75" |
| Round Tube at 90° | 2.75" |
| Coolant System | Yes |
| Slotting Capable | Yes, Left and Right |
| Vice Style | Dual Action, Self Centering |
| Max. Vice Opening | 4.5" |
| Head Style | Pivot |
| Arbor Size | 1.26" |
| Motor | 3.0 / 1.5 hp |
| Included Accesories | Included Accesories |
| Blade Speed | Two Speeds, 60 / 120 (rpm) |
| Power | 220V / 3-phase |
| Shipping Weight | 635 lbs |
| Shipping Dimensions | 60" x 44" x 77" |
