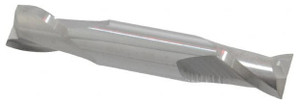

Atrax 2-Flute Centercutting Double End Mill, 7/16" Mill Dia., 7/16" Shank Dia., 9/16" LOC - 45-281-3
Brand: Atrax- SKU:
- 45-281-3
- ID:
- 109940
| Mill Diameter | 7/16" |
| Shank Diameter | 7/16" |
| Length of Cut | 9/16" |
| Overall Length | 2-3/4" |
$50.21
Atrax 2-Flute Centercutting Double End Mill
7/16" Mill Dia., 7/16" Shank Dia., 9/16" LOC
Solid Micrograin Carbide
Features and Benefits:
- All end mills are centercutting allowing for 3 axis capability of plunging, ramping and profile milling
- Two flute end mills are excellent for deep slotting application and also for use on aluminum and nonferrous materials
- Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
- Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
- Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
| Tolerances: | Size | Tolerance |
| Shank Dia. | All Sizes | +.000/-.0005" |
| Cutting Dia. | 1/64 - 1/4" | +.000/-.002" |
| 9/32 - 3/4" | +.000/-.003" |
